The secret of

Examples of Module Applications

Illuminance
Applications
Detection of indicator lights and signals
Distance Measurement
Applications
Counting production units
Acceleration
Applications
Equipment condition monitoring
(Vibration detection, predictive maintenance)
Temperature and Humidity
Applications
Environmental temperature monitoring in food storage units
Atmospheric Pressure
Applications
Measuring atmospheric pressure in greenhouses and fields
Thermocouple
Applications
Monitoring processing temperatures
Dry Contact Input
Applications
Input for the status of switches and open/close sensor states
Wet Contact Input
Applications
Input for the status of control panels
Contact Output
Applications
Driving external devices

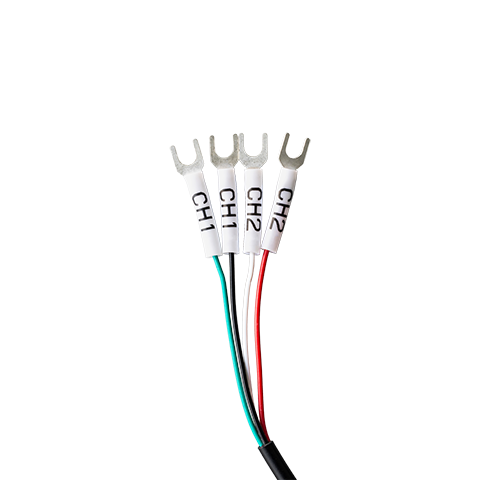

2ch ADC
Applications
Voltage and current monitoring

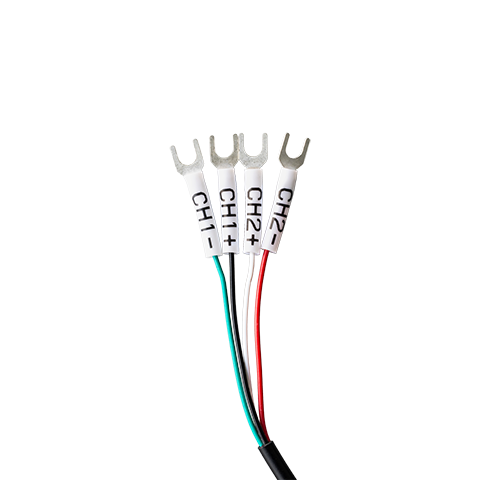

2ch Differential ADC
Applications
Differential measurement of voltage and current values
2ch 4-20mA
Applications
Measurement with 4-20mA Sensors

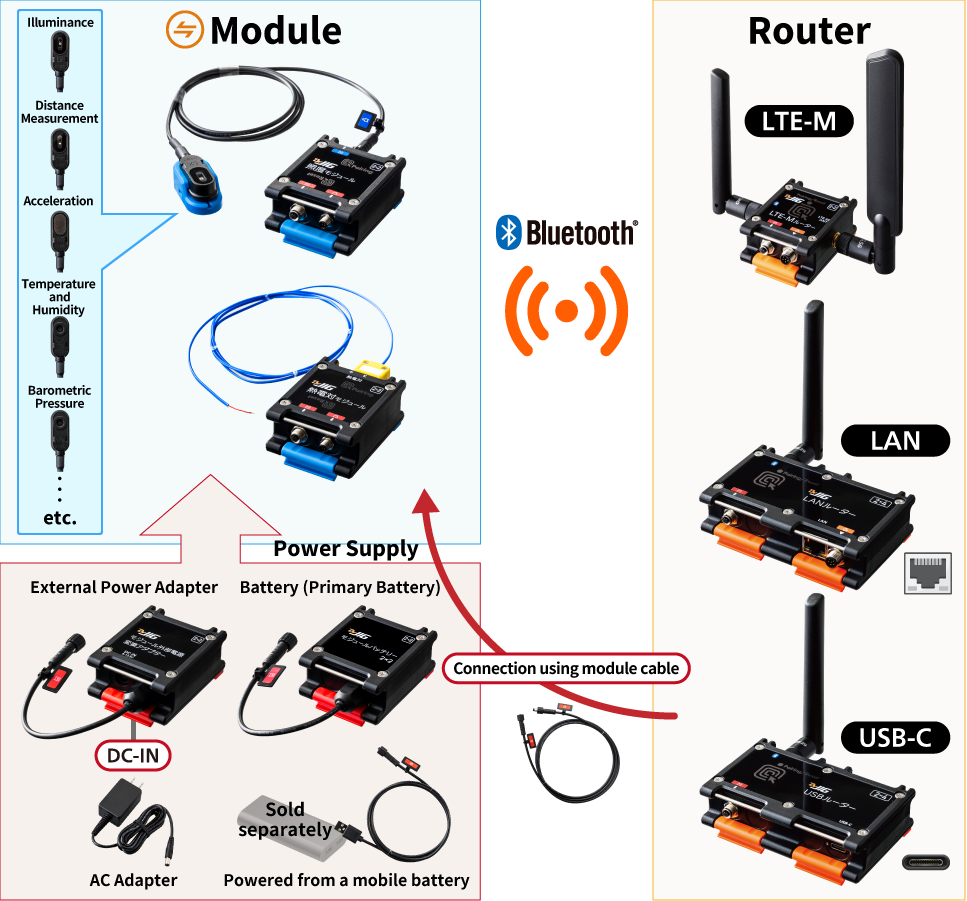

Bluetooth®-Powered Communication
Between Modules and Routers

Modules communicate with the router using Bluetooth® with ultra-low power consumption. Bluetooth® LongRange mode allows communication over distances of several hundred meters.

Modules can be Powered from
Various Power Sources

When the module and router are connected via a module cable, the router supplies power to the module. The cable can be extended up to 5 meters, and multiple modules can be connected in a daisy-chain setup.
Additionally, power can be supplied from the BraveJIG battery, a distribution panel using an external power conversion adapter, AC power, or a mobile battery via a module USB Type-A conversion cable. The power supply method can be selected based on the site conditions and data acquisition frequency.

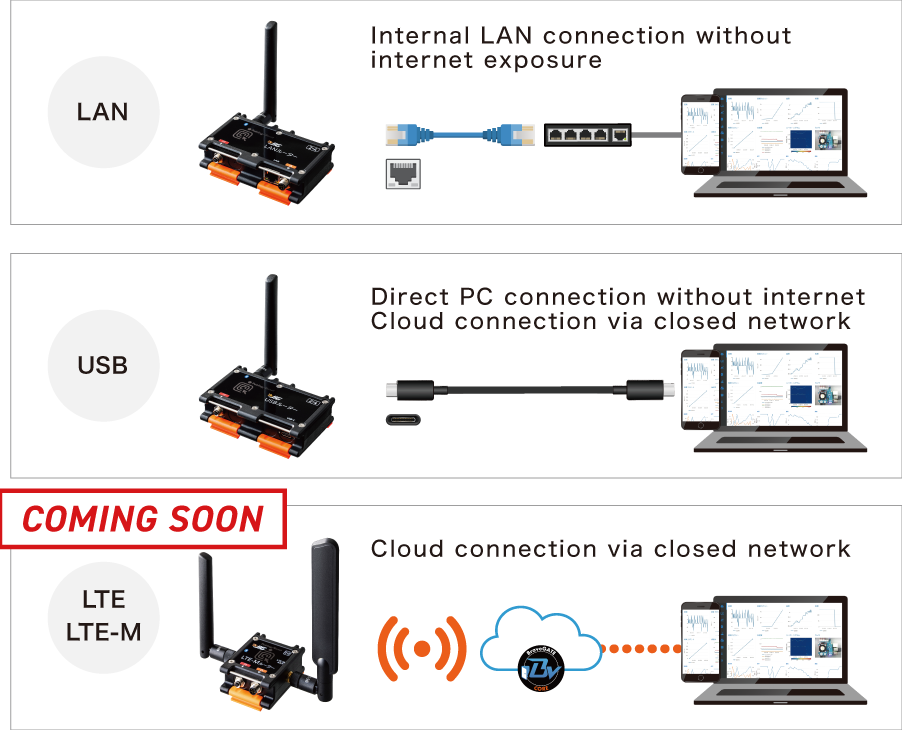

A Versatile Range of RoutersSelect the Optimal Network (data transmission path) for acquiring sensor data

Choose the ideal router for your needs: LAN router for local area networks via Ethernet, USB router for direct PC connection via USB-C, or LTE-M router for cloud connectivity.
Coming soon: the Nessum^* router, designed for indoor wiring standards.

What is Nessum?Nessum is a technology developed by Panasonic Holdings Corporation to enable long-distance wired communication and high-speed short-range wireless communication across various media, including wired, wireless, and underwater networks.

Simple Pairing Between Sensor Modules and Router Modules Pairing is as easy as Touching the Devices Together

No additional setup apps are required, making installation quick and efficient.

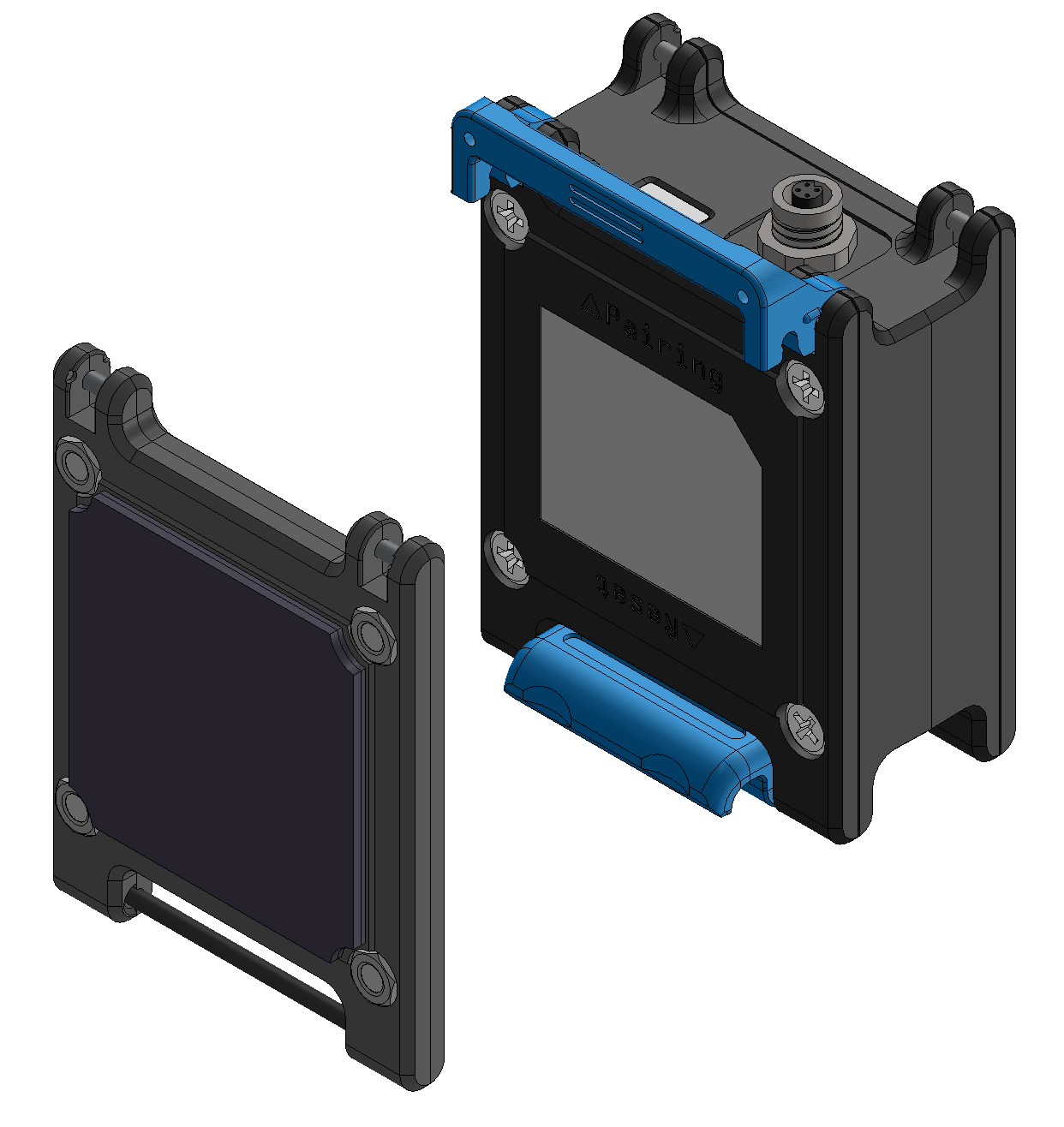

Easy Installation with One-Touch Lever Modules can be easily stacked and installed on various mounting bases to Fit Any Installation Location

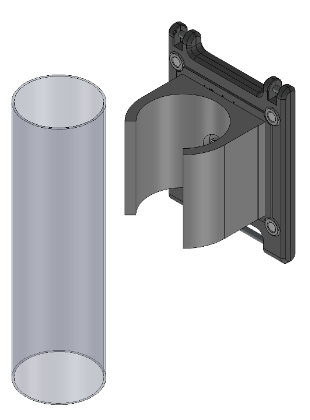

Our lineup of mounting bases is compatible with common on-site materials, such as Erector and T-slots.
Modules can be secured with a one-touch mechanism, requiring no screws, adhesive glue, or tape.

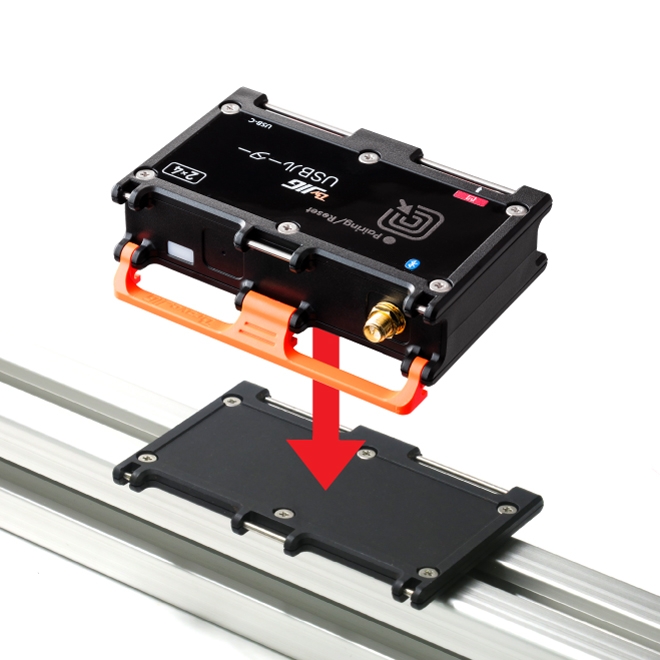

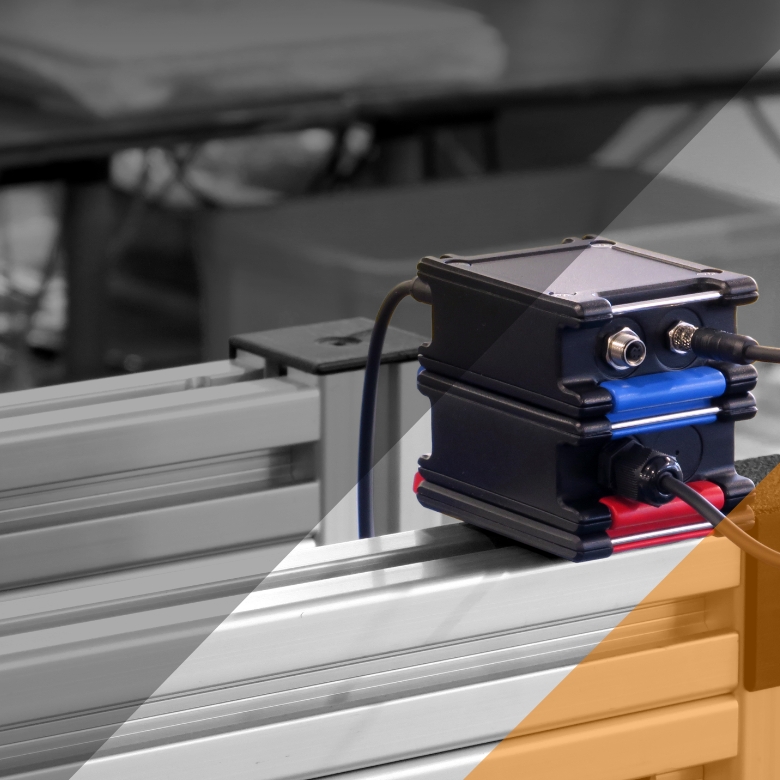

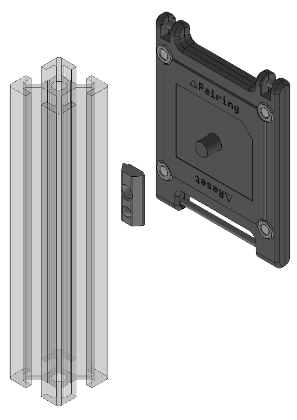

Router Module Mounted Directly onto T-Slots

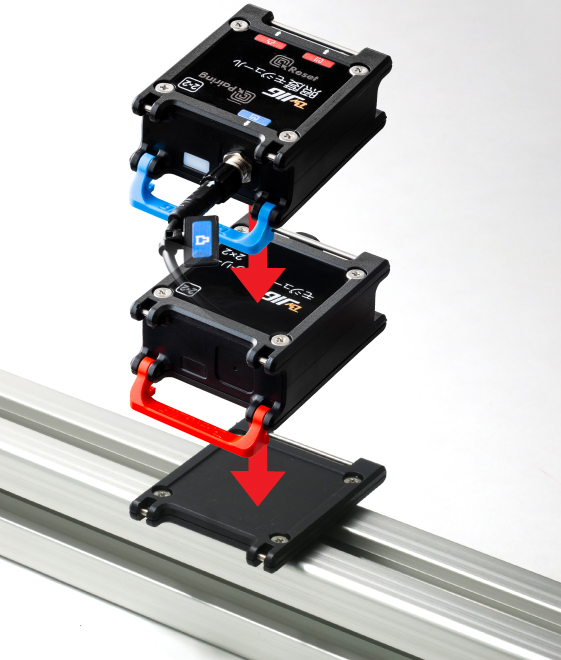

Install the Sensor Module and Battery Module Together

Installation Examples

Flexible installation options for various locations.

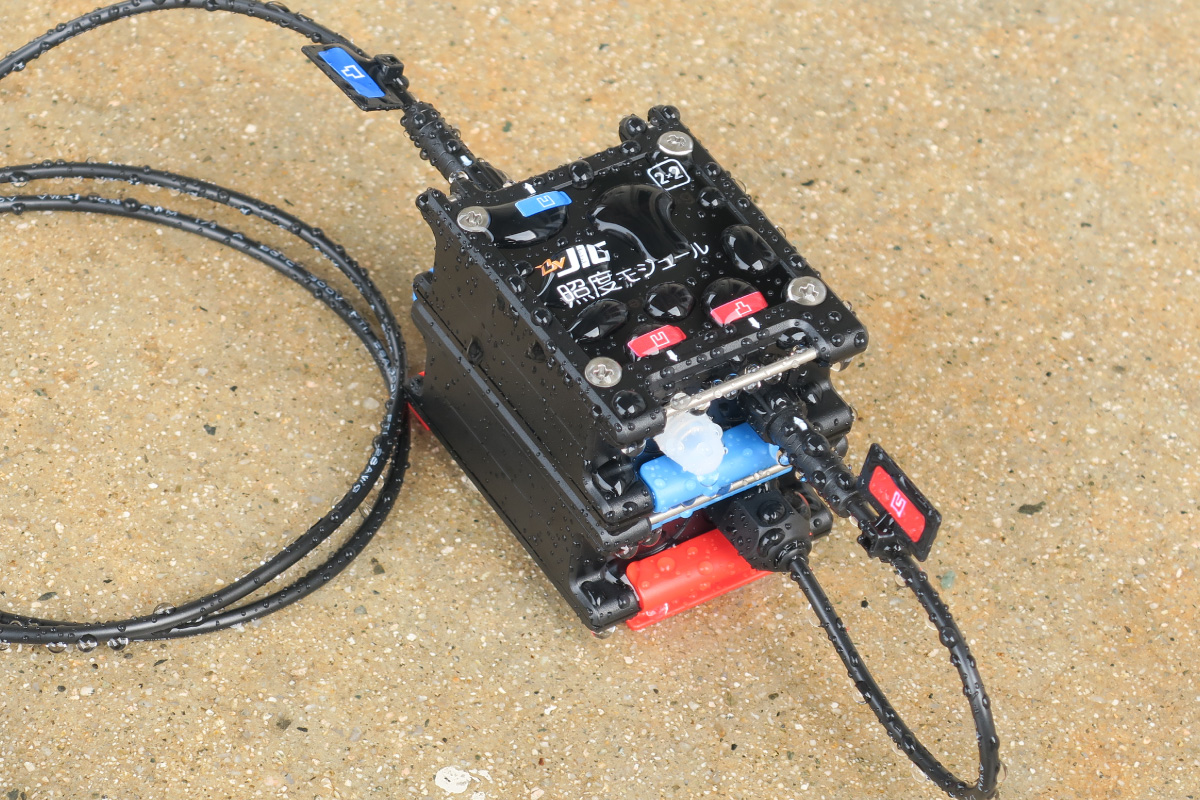

Versatile InstallationIP65 Waterproof Design

The waterproof design makes it suitable for areas exposed to water, including the exterior of buildings and facilities.

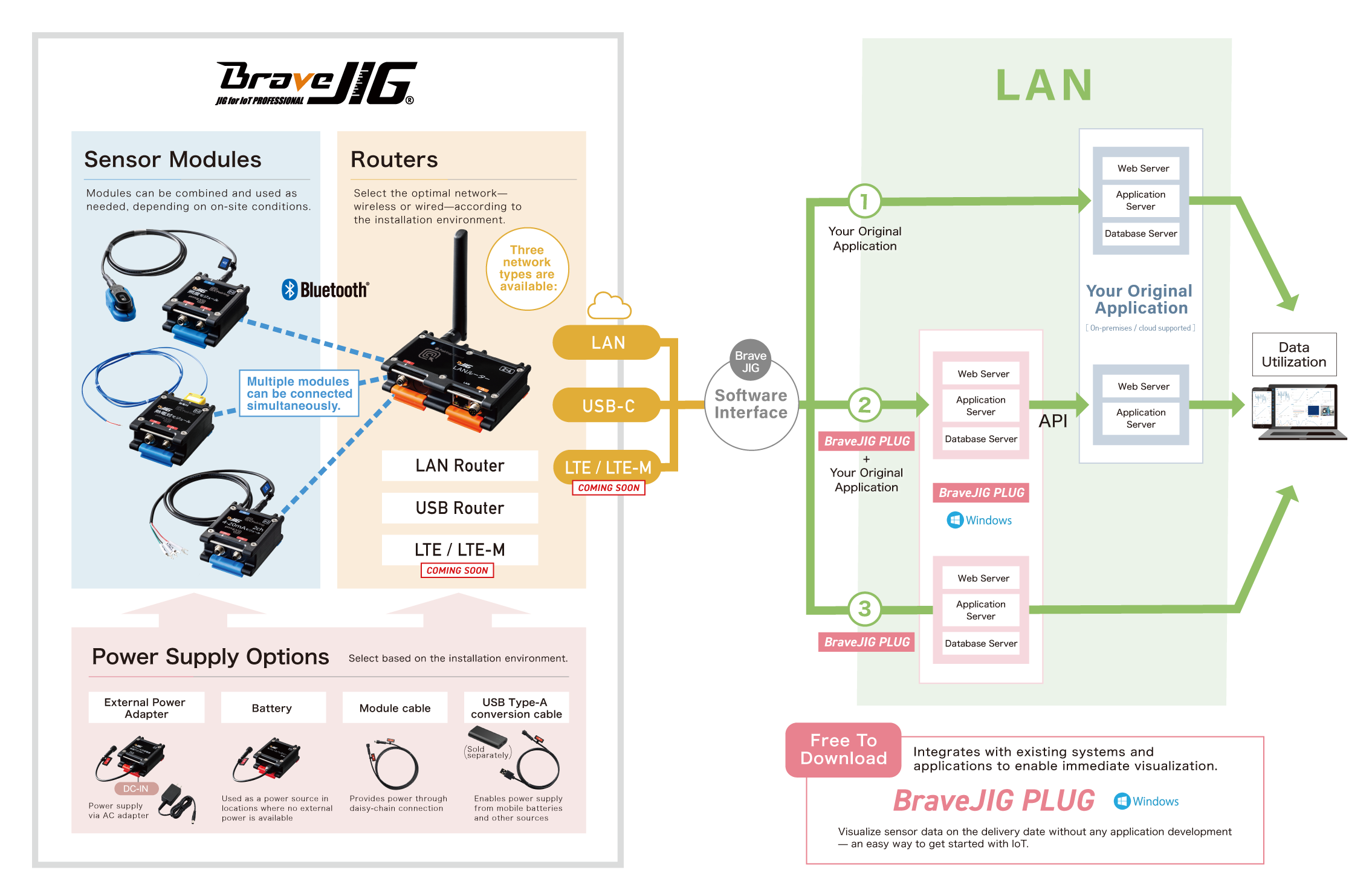

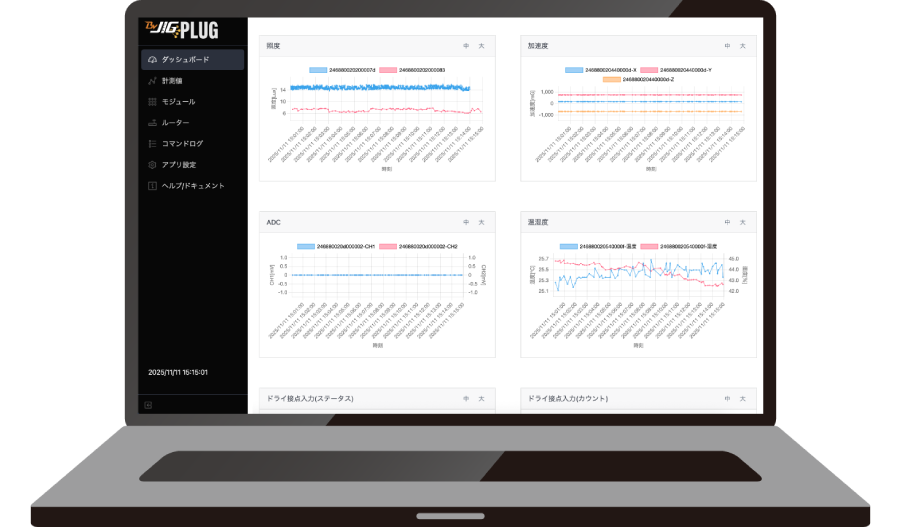

Seamless Integration with Your Custom System, Instant "Visualization" with free, open-source software

The publicly available BraveJIG software interface enables seamless integration with your custom systems and applications, allowing you to collect sensor data, configure settings, and perform DFU via downlink. Additionally, by using the free open-source software "IoT Implementation Support Kit," distributed by the Fukuoka Prefectural Industrial Technology Center, you can instantly visualize sensor data without the need for application development, making it easy to kickstart your IoT project.

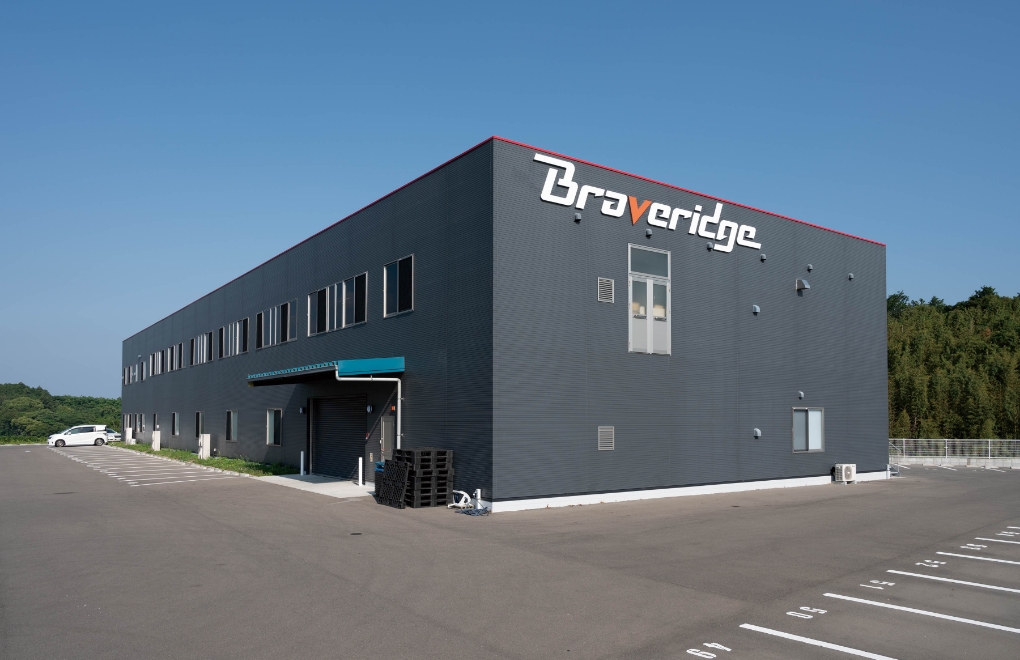

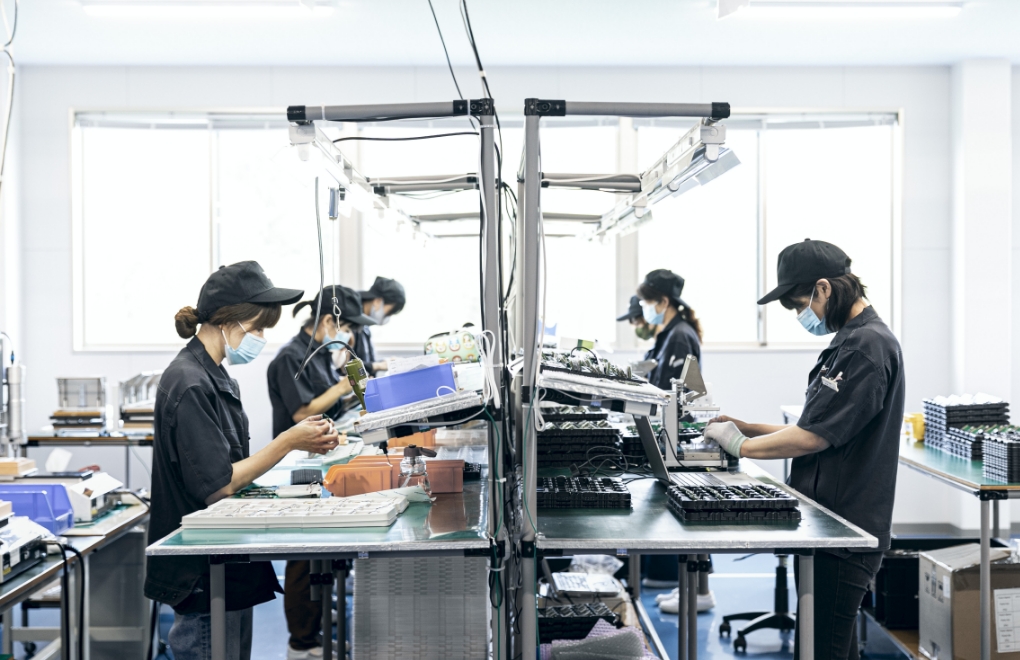

Stable Long-Term Supply from Japan-Based Manufacturing

Produced and quality-controlled at Braveridge's Japan-based factory, ensuring consistent and reliable supply. It's a trusted solution for your IoT and DX business needs.
