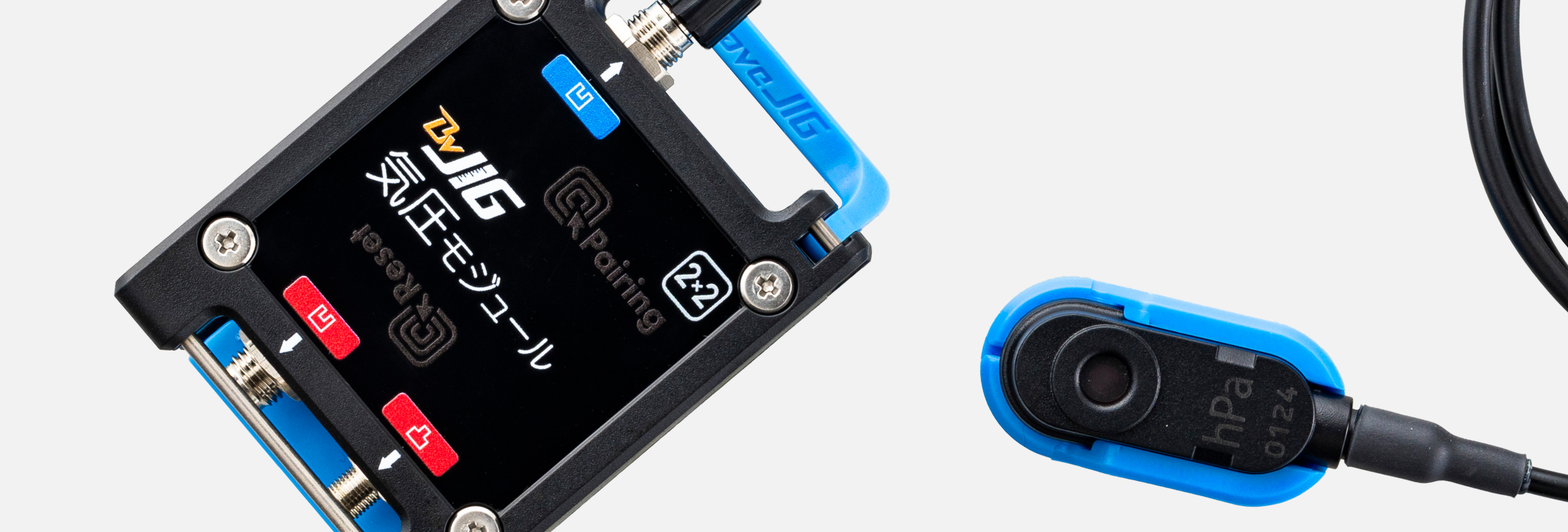

Positive pressure control for clean rooms and related applicationsBraveJIG Barometric Pressure Module
- Model Number
- BJ-MD-BP-01
- Product Category
- Sensor Module
Positive pressure control for clean rooms and related applications

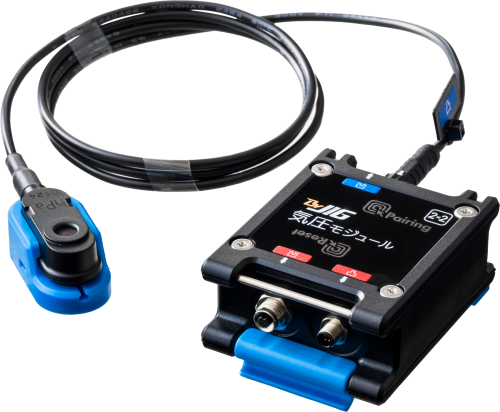

This module measures air pressure. It can be used for pressure management in clean rooms, vinyl greenhouses, and cultivation facilities.
The module connects to the router using Bluetooth® technology.
The module communicates with the router via Bluetooth® Low Energy. Communication of several hundred meters is also possible in Bluetooth® Long Range mode.
Various power supply options available depending on site conditions
Power supply to modules can be selected according to installation conditions and sensing frequency. Options include power from the router via module cable, from a BraveJIG Battery, from a distribution board or AC power source via an external power conversion adapter, or from a mobile battery using a Module USB Type-A conversion cable.
Specifications
- Wireless Communication
- Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Bluetooth® LE
Module - BVMCN52840CFSLR
- Power Supply
- Input Voltage: DC 2.4 to 5.25 V
Supplied via power input port*Power can be supplied from dedicated products such as the BraveJIG Router, Module Battery, Module External Power Conversion Adapter, or USB Type-A Conversion Cable.
- Current Consumption
-
Minimum Value Measurement Condition Instantaneous Mode Uplink Interval: 60 s Tx Power: −40 dBm Advertising Interval: 1,000 ms Measured Value Long Range 95 μA Legacy 80 μA Maximum Value Measurement Condition Sampling Mode (Sampling Interval: 500 ms / 2 Hz) Uplink Interval 60 s Tx Power +8 dBm Advertising Interval 100 ms Measured Value Long Range 1,550 μA Legacy 812 μA Note: The above values were measured in standalone operation, excluding relay connections.
- Data Communication
Interface - Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Frequency Range
- Bluetooth® LE: 2,402 MHz to 2,480 MHz
NFC: 13.56 MHz
- Transmission Power (terminal output)
- Bluetooth® LE: −40 to +8 dBm
- Barometric pressure sensor Specifications
-
- Measurement Range:
- 260 to 1,260 hPa
- Sensitivity:
- 4,096 LSB/hPa
- Accuracy:
- ±1.0 hPa
- DFU (OTA)
- Supported
- Dimensions
- Module: approx. 50 × 69 × 32 mm
Sensor: approx. 16 × 58 × 10 mm (excluding cable)
- Weight
- Module: approx. 58 g
Sensor: approx. 19 g
- Operating Temperature Range
- −10 ℃ to 60 ℃
- Dustproof / Waterproof
- Equivalent to IP65*
With protective caps or dedicated cables properly connected.
- Material
- PC + ABS (enclosure material)
- Production
- Braveridge Co., Ltd. Itoshima Factory
- Accessories
- Sensor holder, screws (for sensor holder mounting), cable ties, double-sided tape, module port protection cap, user manual (with warranty)
