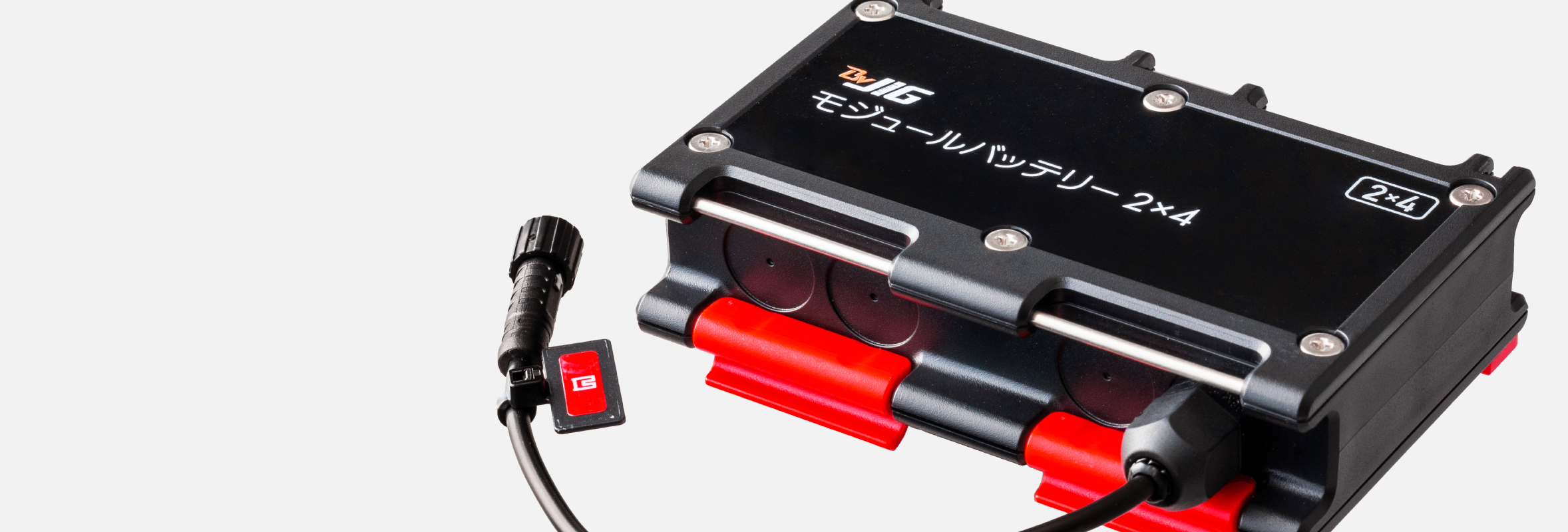

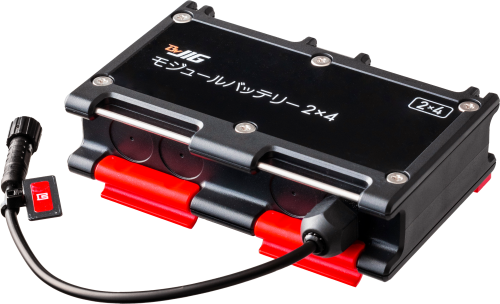

For BraveJIG modules 2×4 waterproof and dustproof battery
This is a waterproof and dustproof 2×4 size battery designed for BraveJIG modules.
It supplies power to BraveJIG modules, allowing them to be used even in environments where securing a power source is difficult.
Specifications
- Battery type
- CR17345 (CR123)*
Non-replaceable
- Output voltage
- 3V
- Dimensions
- Module: approx. 100 × 69 × 32 mm (excluding cable and connector)
- Weight
- Module: approx. 160 g
- Operating Temperature Range
- −10 ℃ to 60 ℃
- Dustproof / Waterproof
- Equivalent to IP65*
With the connector properly connected to the designated port
- Material
- PC + ABS (enclosure material)
- Production
- Braveridge Co., Ltd. Itoshima Factory
- Accessories
- User Manual (warranty included)
Documents
BraveJIG product manuals, product specifications, software specifications, instruction manuals, etc.
Documents
