For BraveJIG Routers Power supply to the router from a distribution board or AC

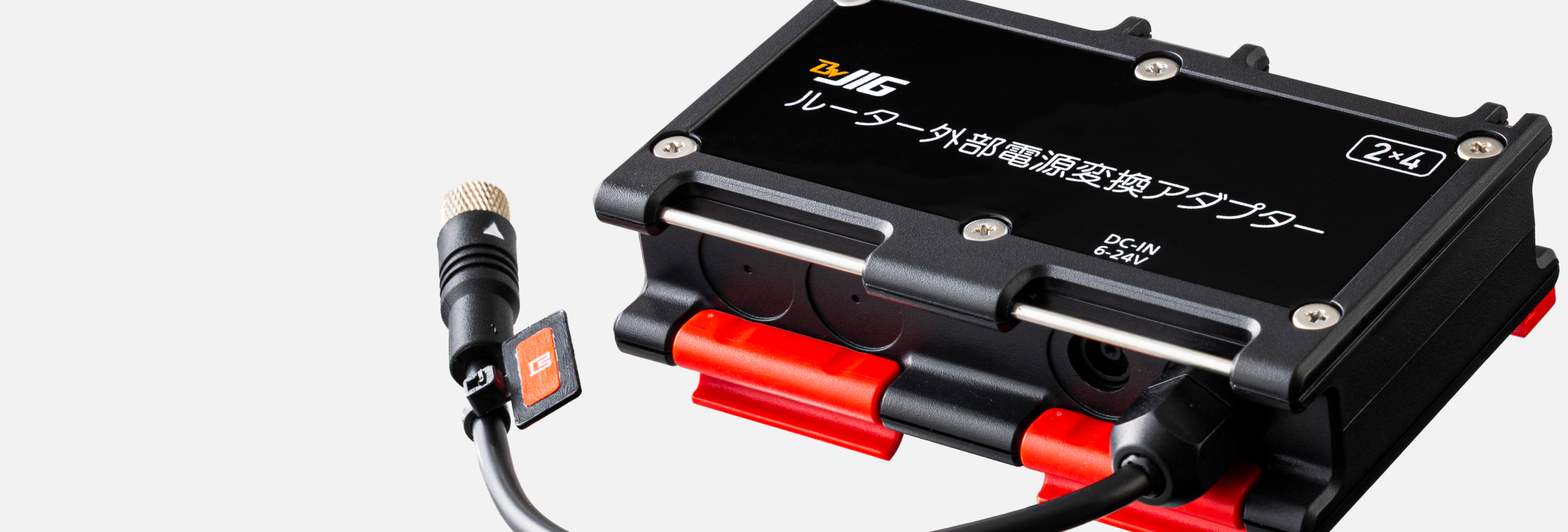

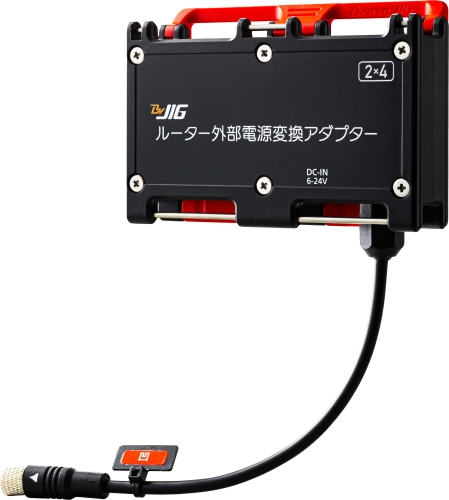

This conversion adapter supplies power from a distribution board or general-purpose AC adapter to the waterproof connector of a BraveJIG Router.

BJ-EXAD-RT-02(ACS) is the set that includes an AC adapter

	BraveJIG Router External Power Conversion Adapter BJ-EXAD-RT-02	BraveJIG Router External Power Conversion Adapter (with AC Adapter) BJ-EXAD-RT-02(ACS)
Input Voltage	6 V–24 V	6 V–24 V
Output Voltage	5 V	5 V
Dimensions	Approx. 100 × 69 × 32 mm (excluding cable and connector)	Approx. 100 × 69 × 32 mm (excluding cable and connector)
Weight	Approx. 95 g	Approx. 95 g
Operating temperature range	−10 ℃ to 60 ℃	−10 ℃ to 60 ℃
Dustproof / Waterproof	IP65 equivalent* When the connector is properly connected to the designated port. The external power input port is not dustproof or waterproof.	IP65 equivalent* When the connector is properly connected to the designated port. The external power input port is not dustproof or waterproof.
Material	PC + ABS (enclosure material)	PC + ABS (enclosure material)
Production	Braveridge Co., Ltd. Itoshima Factory	Braveridge Co., Ltd. Itoshima Factory

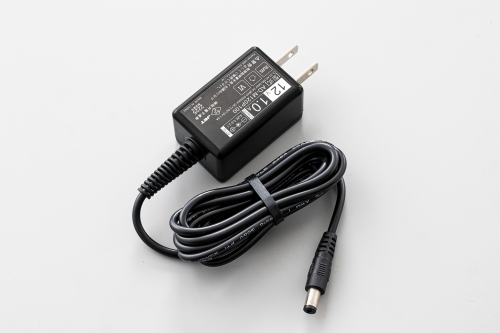

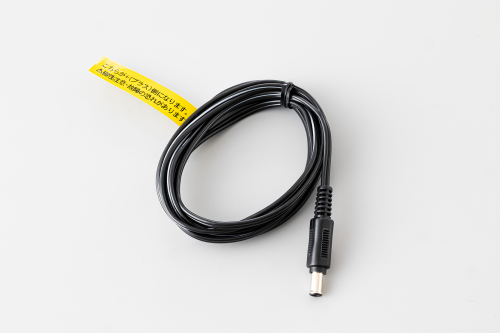

Accessories	DC plug cable Cable length: 1.8 m Cable ends: Input side: unterminated Output side (to this product): DC plug (inner ϕ 2.1 mm, outer ϕ 5.5 mm) Polarity: Positive: white dotted line Negative: black line User manual (with warranty)	AC adapter Cable length: 1.5 m Output voltage: 12 V Max output current: 1 A User manual (with warranty)
