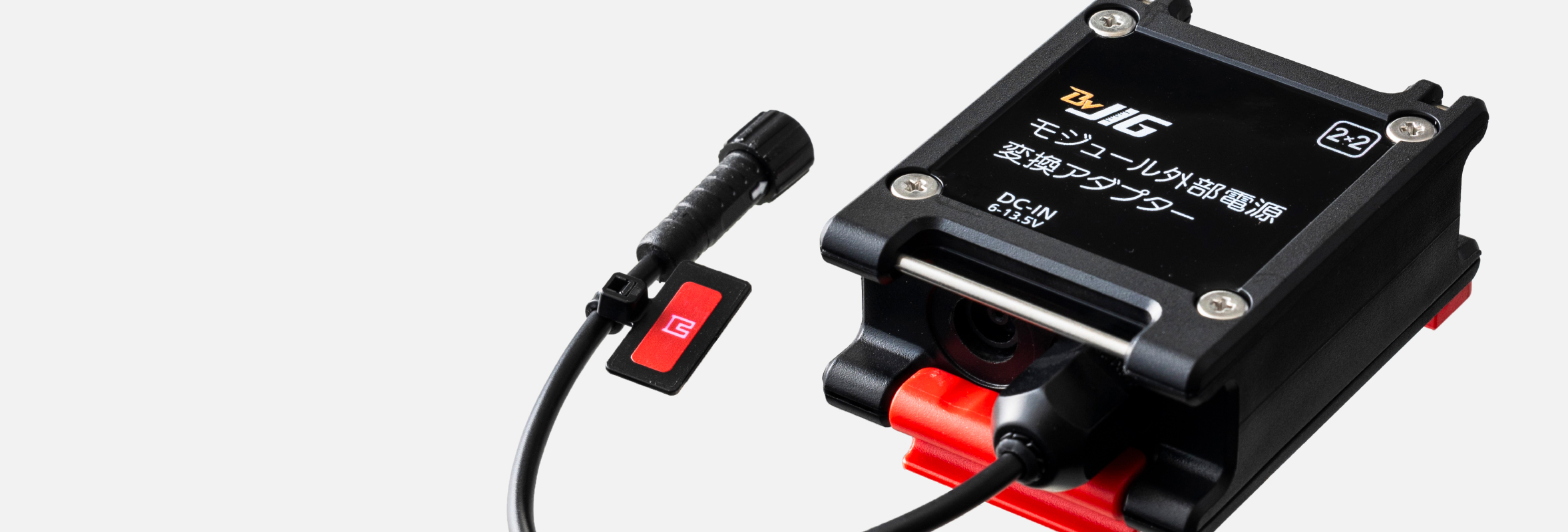

Power supply to the module from a distribution board or ACBraveJIG Module External Power Conversion Adapter
- Model Number
- BJ-EXAD-MD-01 / BJ-EXAD-MD-01(ACJ)
- Product Category
- External Power Supply Adapters
For BraveJIG modules Power supply to the module from a distribution board or AC

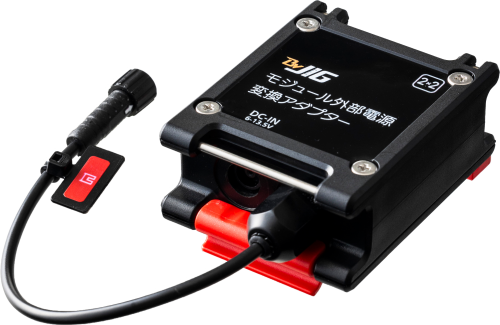

This is a conversion adapter that supplies power to BraveJIG modules using waterproof connectors from distribution boards or AC power.
It allows stable operation such as high-frequency sensing without worrying about battery life of the modules.

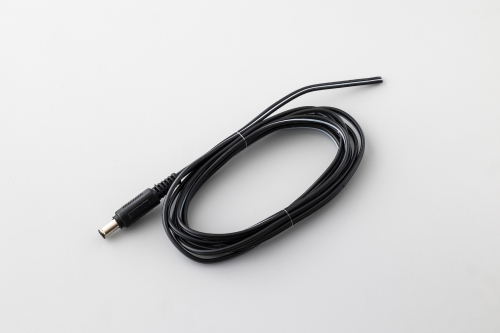

BJ-EXAD-MD-01 includes a plug-attached cable.

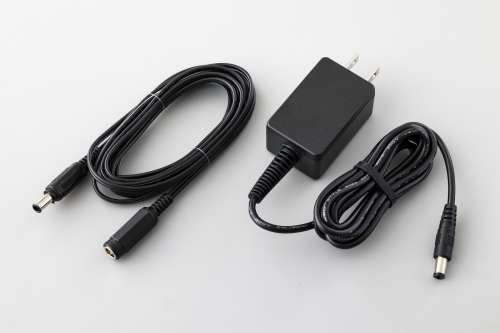

BJ-EXAD-MD-01(ACJ) includes an AC adapter and jack set.
BJ-EXAD-MD-01(ACJ) is the set that includes an AC adapter
Specifications
| BraveJIG Module External Power Conversion Adapter BJ-EXAD-MD-01 |
BraveJIG Module External Power Conversion Adapter (with AC adapter and jack set) BJ-EXAD-MD-01(ACJ) |
|
|---|---|---|
| Input Voltage | 6 V–13.5 V | 6 V–13.5 V |
| Output Voltage | 5 V | 5 V |
| Dimensions | Approx. 50 × 69 × 32 mm (excluding cable and connector) | Approx. 50 × 69 × 32 mm (excluding cable and connector) |
| Weight | Approx. 50 g | Approx. 50 g |
| Operating temperature range | −10 ℃ to 60 ℃ | −10 ℃ to 60 ℃ |
| Dustproof / Waterproof | IP65 equivalent*
When the connector is properly connected to the designated port. The external power input port is not dustproof or waterproof. Apply dustproof/waterproof protection as needed. |
IP65 equivalent*
When the connector is properly connected to the designated port. The external power input port is not dustproof or waterproof. Apply dustproof/waterproof protection as needed. |
| Material | PC + ABS (enclosure material) | PC + ABS (enclosure material) |
| Production | Braveridge Co., Ltd. Itoshima Factory | Braveridge Co., Ltd. Itoshima Factory |
| Accessories |
|
|
