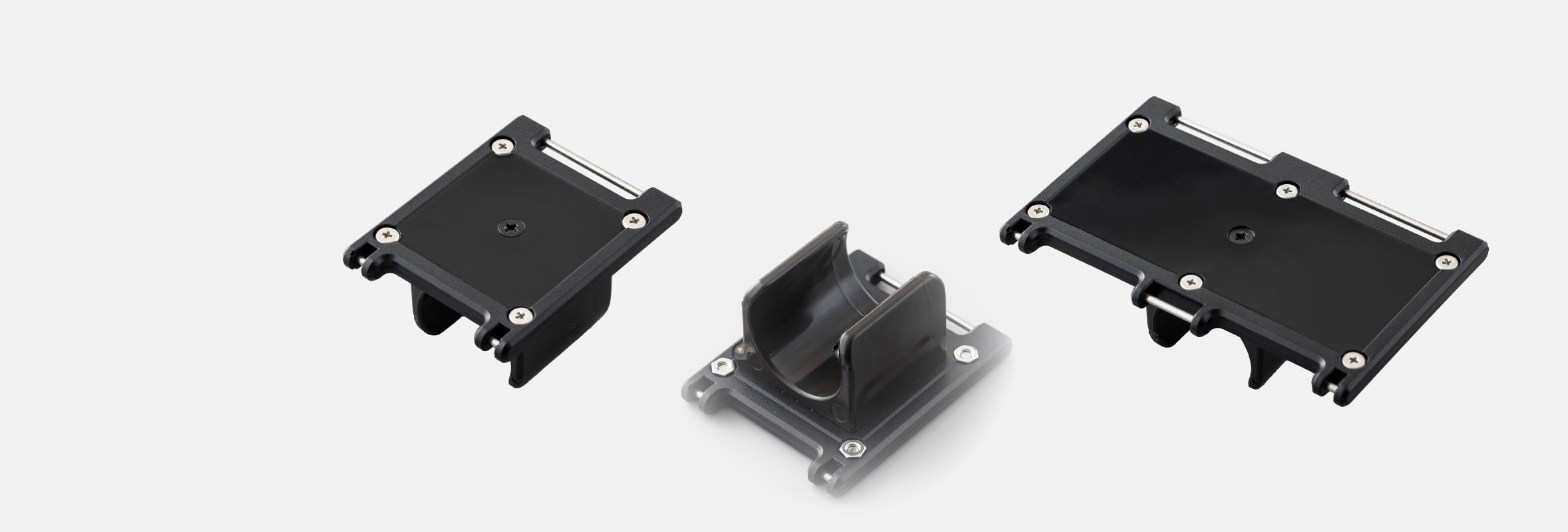

BraveJIG φ28 Pipe 2×4 / 2×2
- Model Number
- BJ-AB24-1H-01 / BJ-AB22-1H-01
- Product Category
- Mounting Bases
Mounting bases for securing BraveJIG modules onto φ28 pipes.
Mounting bases for securing BraveJIG modules onto φ28 pipes.
By selecting the appropriate base for your installation environment, BraveJIG modules can be easily mounted and secured.
Available in two sizes: 2×4 and 2×2.

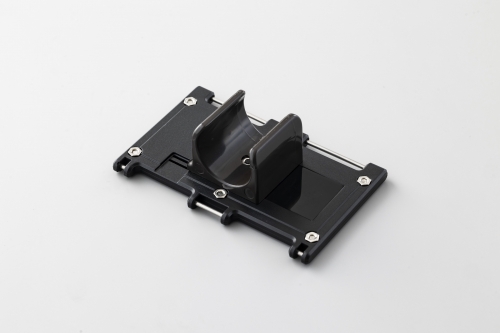

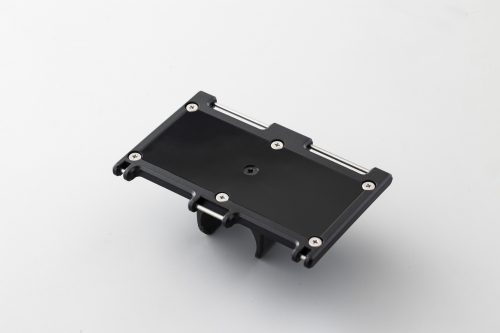

BraveJIG φ28 Pipe 2×4 BJ-AB24-1H-01

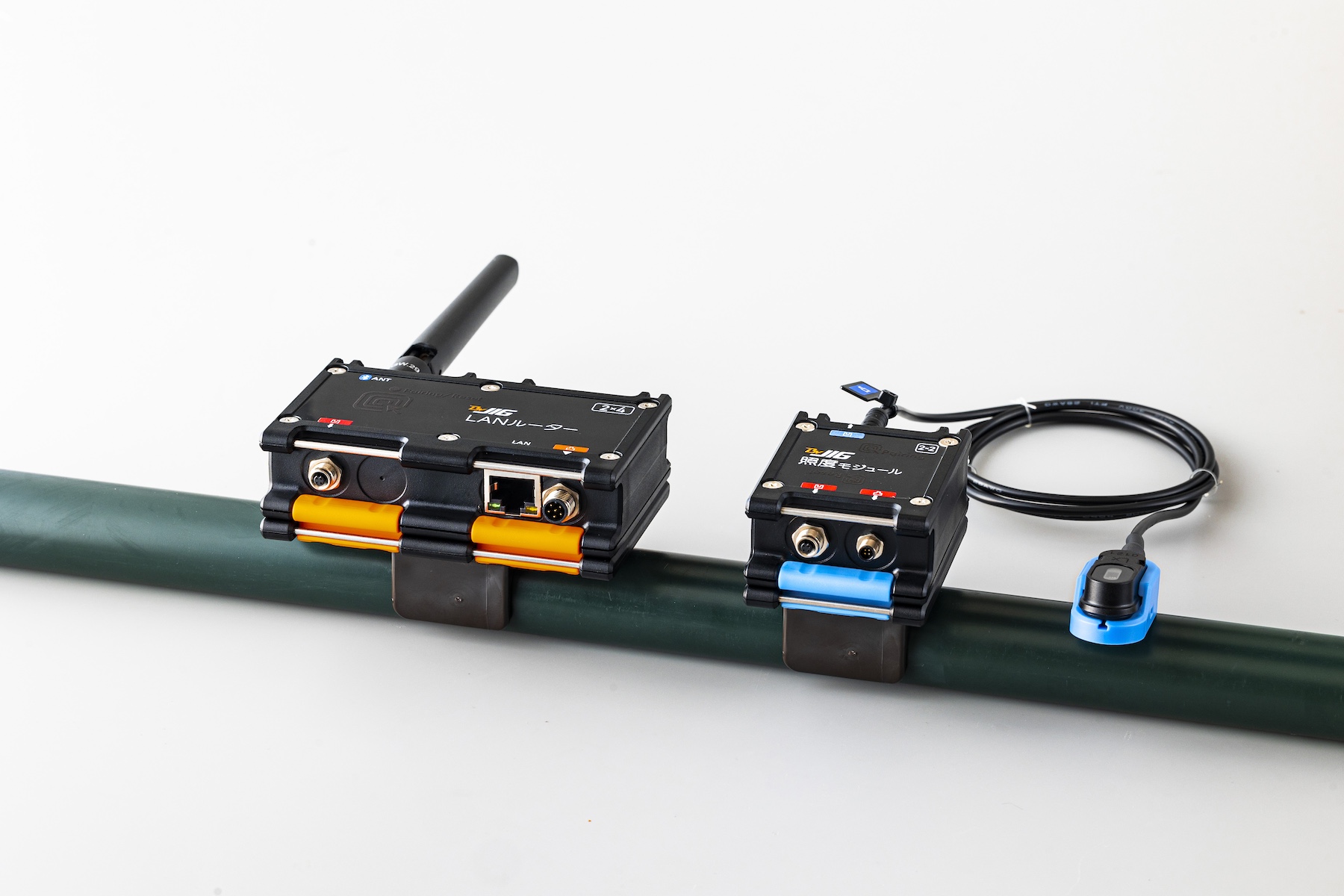

A mounting base for securing 2×4 size modules such as LAN routers and USB routers onto Ø28 pipes.

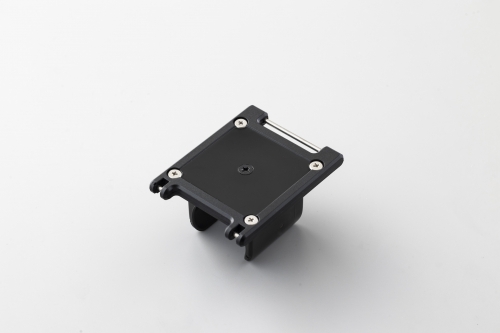

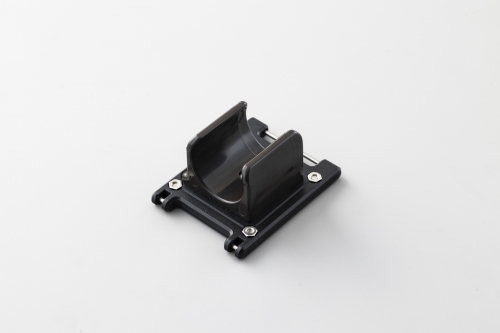

BraveJIG φ28 Pipe 2×2 BJ-AB22-1H-01
A mounting base for securing various 2×2 size modules onto Ø28 pipes.
Specifications
| BraveJIG φ28 Pipe 2×4 BJ-AB24-1H-01 | BraveJIG φ28 Pipe 2×2 BJ-AB22-1H-01 | |
|---|---|---|
| Dimensions | Approx. 100 × 64 × 33 mm | Approx. 49 × 64 × 33 mm |
| Weight | Approx. 48 g | Approx. 29 g |
| Operating temperature range | −10 ℃ to 60 ℃ | −10 ℃ to 60 ℃ |
| Material | PC + ABS (enclosure material) | PC + ABS (enclosure material) |
| Production | Braveridge Co., Ltd. Itoshima Factory | Braveridge Co., Ltd. Itoshima Factory |
