BraveJIG DIN Rail 2×4 / 2×2
- Model Number
- BJ-AB24-DN-01 / BJ-AB22-DN-01
- Product Category
- Mounting Bases
Mounting bases for securing BraveJIG modules onto DIN rails.
Mounting bases for securing BraveJIG modules onto DIN rails.
By selecting the appropriate base
for your installation environment, BraveJIG modules can be easily mounted and
secured

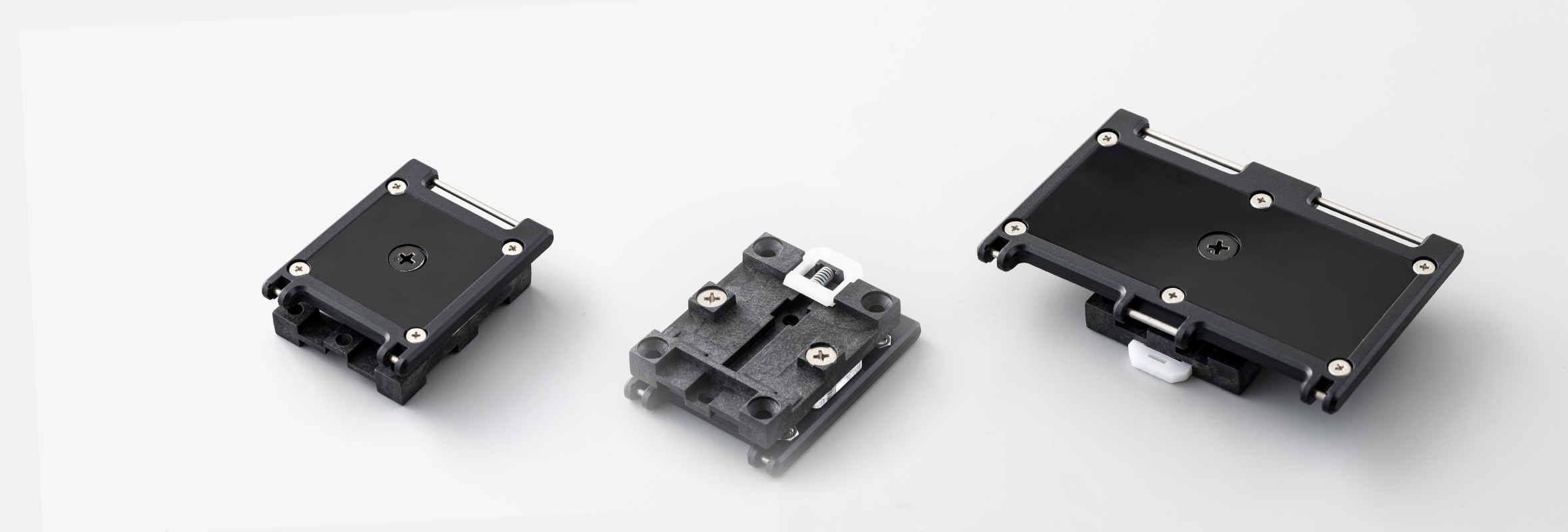

Available in two sizes: 2×4 and 2×2.

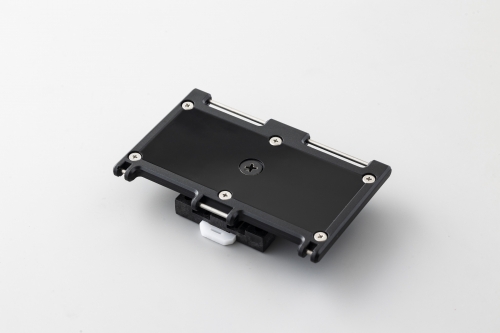

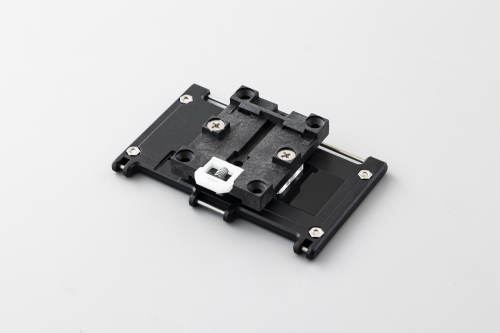

BraveJIG DIN Rail 2×4 BJ-AB24-DN-01
A mounting base for securing 2×4 size modules such as LAN routers and USB routers.

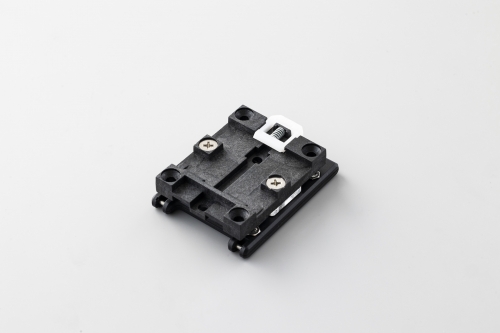

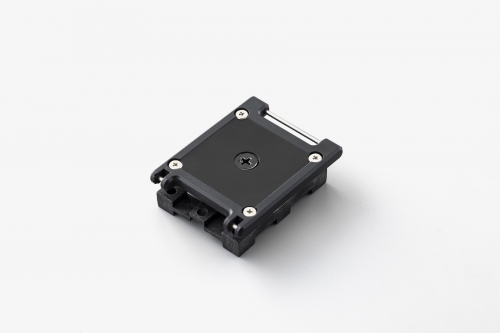

BraveJIG DIN Rail 2×2 BJ-AB22-DN-01
A mounting base for securing various 2×2 size modules.
Specifications
| BraveJIG DIN Rail 2×4 BJ-AB24-DN-01 | BraveJIG DIN Rail 2×2 BJ-AB22-DN-01 | |
|---|---|---|
| Dimensions | Approx. 100 × 64 × 18 mm | Approx. 49 × 64 × 18 mm |
| Weight | Approx. 52 g | Approx. 34 g |
| Operating temperature range | −10 ℃ to 60 ℃ | −10 ℃ to 60 ℃ |
| Material | PC + ABS (enclosure material) | PC + ABS (enclosure material) |
| Production | Braveridge Co., Ltd. Itoshima Factory | Braveridge Co., Ltd. Itoshima Factory |
