BraveJIG T-Slot 2×4 / 2×2
- Model Number
- BJ-AB24-TS-01 / BJ-AB22-TS-01
- Product Category
- Mounting Bases

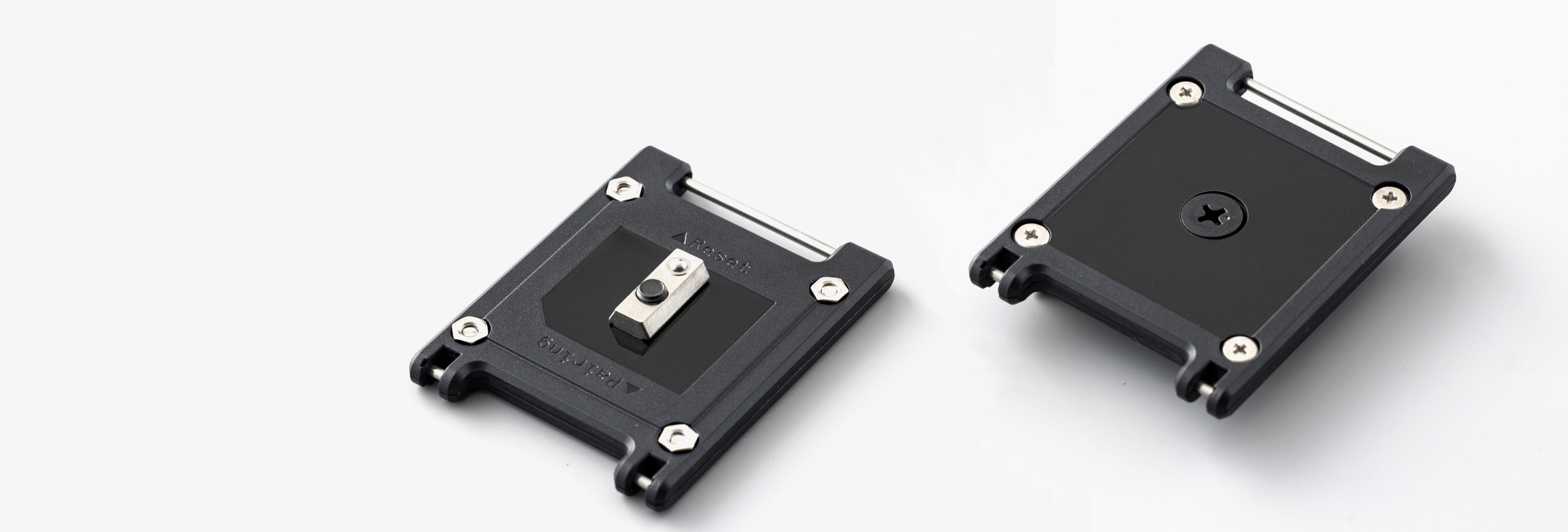

Mounting base for securing BraveJIG series to T-slots.
Mounting base for securing BraveJIG series to T-slots.

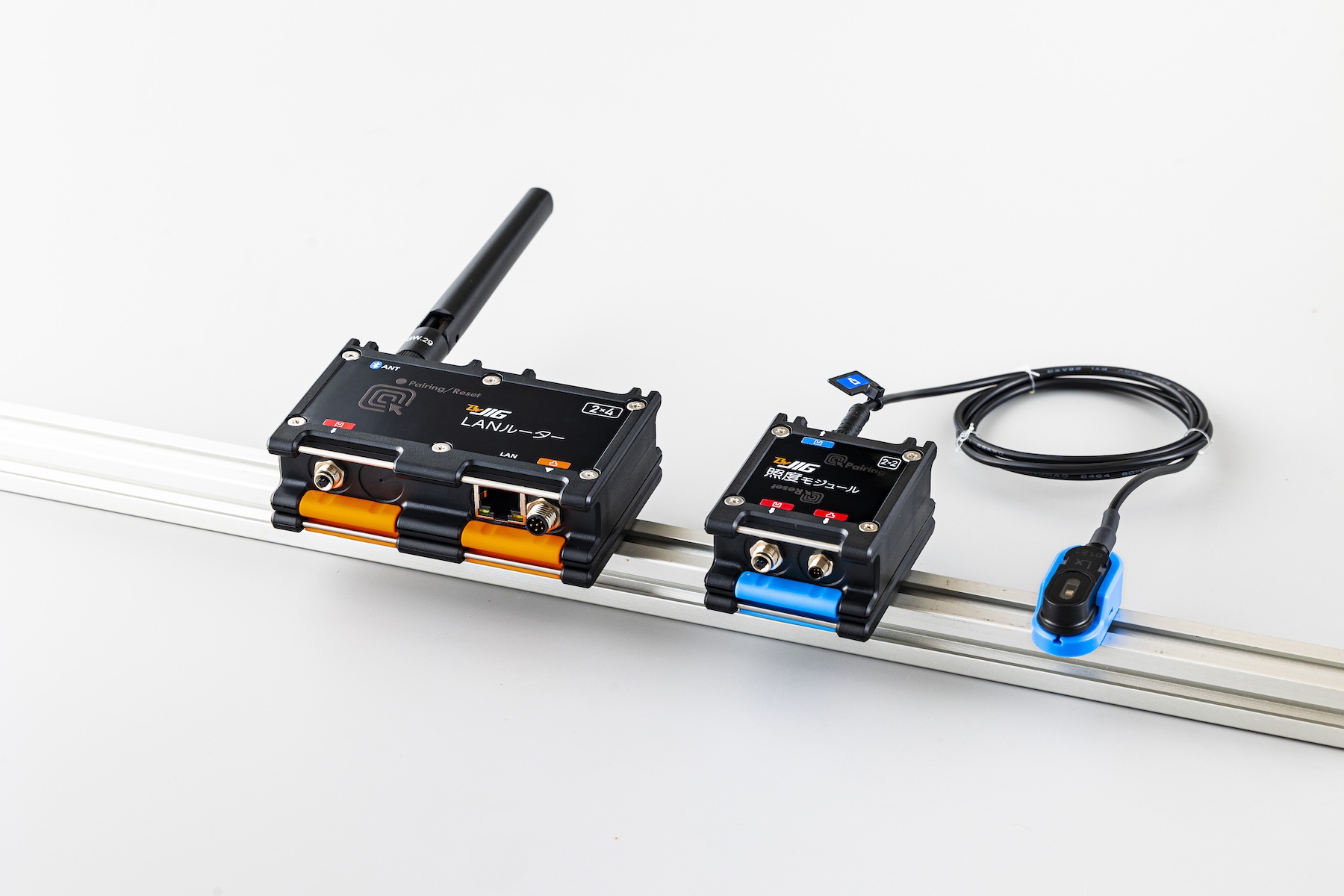

By selecting the appropriate base depending on the installation environment, BraveJIG can be easily mounted and secured.
Available in two sizes: 2×4 and 2×2.

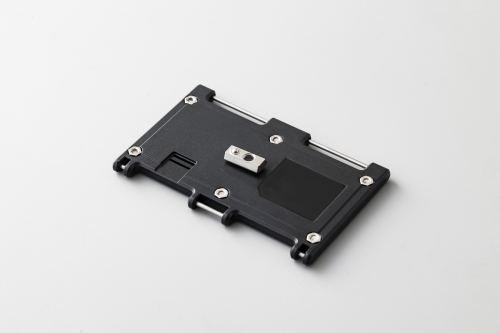

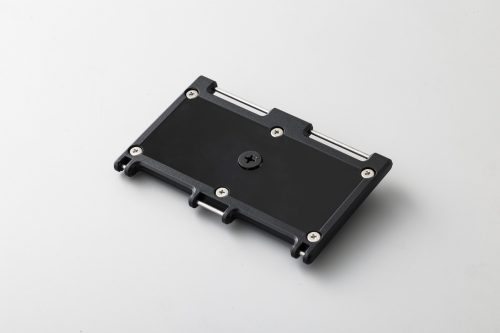

BraveJIG T-Slot 2×4 BJ-AB24-TS-01
Mounting base for securing 2×4 size modules such as LAN Routers and USB Routers.

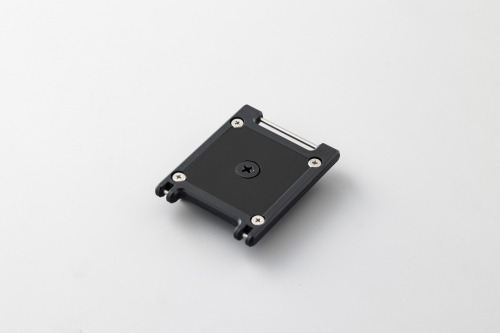

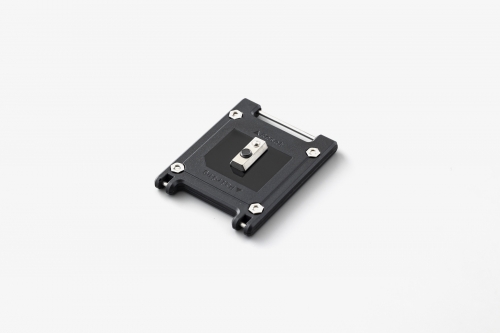

BraveJIG T-Slot 2×2 BJ-AB22-TS-01
Mounting base for securing various 2×2 size modules.
Specifications
| BraveJIG T-Slot 2×4 BJ-AB24-TS-01 | BraveJIG T-Slot 2×2 BJ-AB22-TS-01 | |
|---|---|---|
| Dimensions | Approx. 100 × 64 × 7 mm (excluding spring nut) | Approx. 49 × 64 × 7 mm (excluding spring nut) |
| Weight | Approx. 40 g | Approx. 22 g |
| Operating temperature range | −10 ℃ to 60 ℃ | −10 ℃ to 60 ℃ |
| Material | PC + ABS (enclosure material) | PC + ABS (enclosure material) |
| Production | Braveridge Co., Ltd. Itoshima Factory | Braveridge Co., Ltd. Itoshima Factory |
