BraveJIG Cable Tie 2×4 / 2×2
- Model Number
- BJ-AB24-CT-01 / BJ-AB22-CT-01
- Product Category
- Mounting Bases
Mounting bases for fixing BraveJIG series modules using cable ties.
Mounting bases for fixing BraveJIG series modules using cable ties.
By selecting the appropriate base depending on the installation environment, BraveJIG can be easily mounted and secured.
Available in two sizes: 2×4 and 2×2.

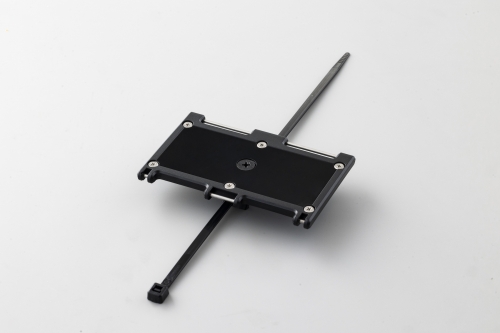

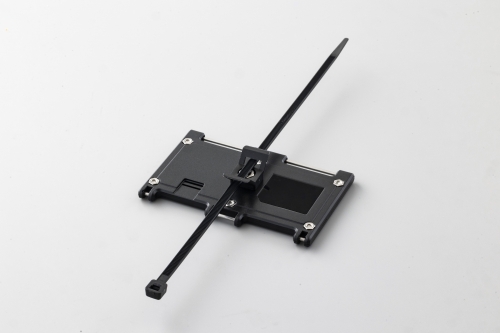

BraveJIG Cable Tie 2×4 BJ-AB24-CT-01
Mounting base for securing 2×4 size modules such as LAN routers and USB routers.

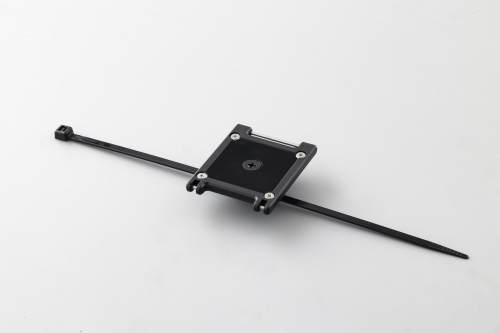

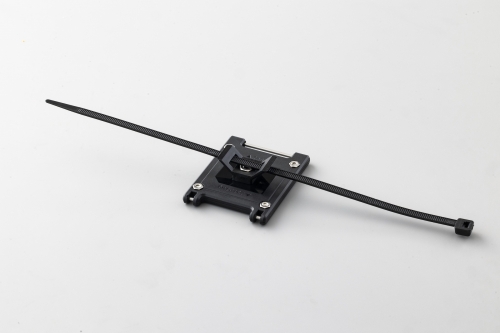

BraveJIG Cable Tie 2×2 BJ-AB22-CT-01
Mounting base for securing various 2×2 size modules.
Specifications
| BraveJIG Cable Tie 2×4 BJ-AB24-CT-01 | BraveJIG Cable Tie 2×2 BJ-AB22-CT-01 | |
|---|---|---|
| Dimensions | Approx. 100 × 64 × 19 mm | Approx. 49 × 64 × 19 mm |
| Weight | Approx. 40 g | Approx. 21 g |
| Operating temperature range | −10 ℃ to 60 ℃ | −10 ℃ to 60 ℃ |
| Material | PC + ABS (enclosure material) | PC + ABS (enclosure material) |
| Production | Braveridge Co., Ltd. Itoshima Factory | Braveridge Co., Ltd. Itoshima Factory |
| Accessories |
|
|
