BraveJIG Double-Sided Tape & Screws 2×4 / 2×2
- Model Number
- BJ-AB24-WS-01 / BJ-AB22-WS-01
- Product Category
- Mounting Bases
A mounting base for securing BraveJIG modules using double-sided tape and screws.
A mounting base for securing BraveJIG modules using double-sided tape or screws.
By selecting the mounting base according to the installation environment, BraveJIG setup and fixing become easy.

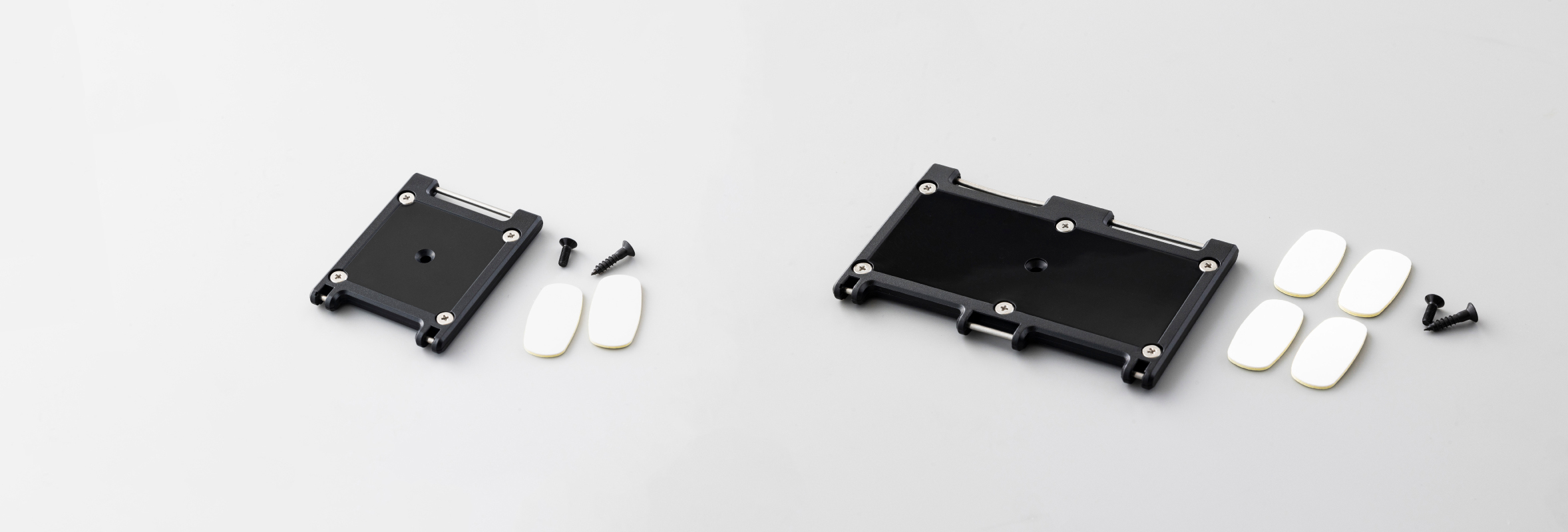

Available in two sizes: 2×4 and 2×2.

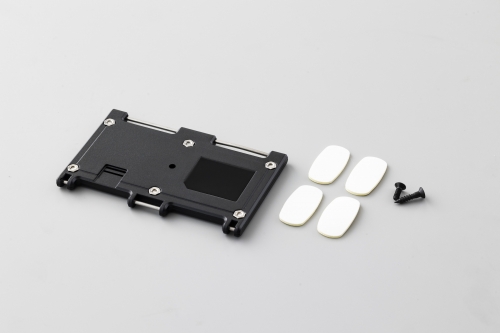

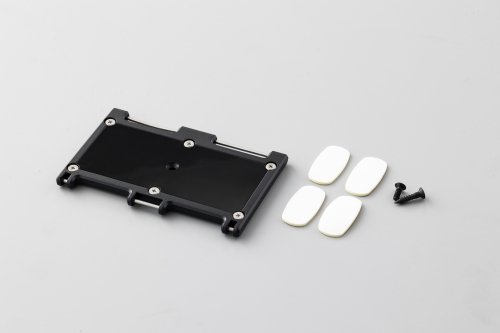

BraveJIG Double-Sided Tape & Screws 2×4
BJ-AB24-WS-01
Mounting base for securing 2×4-size modules such as LAN routers or USB routers.

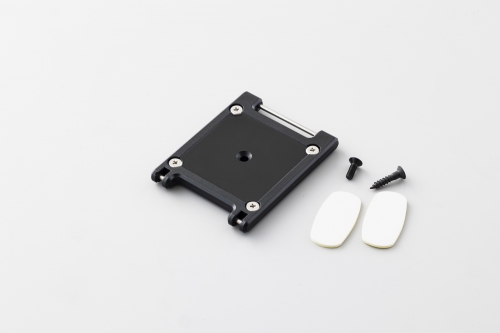

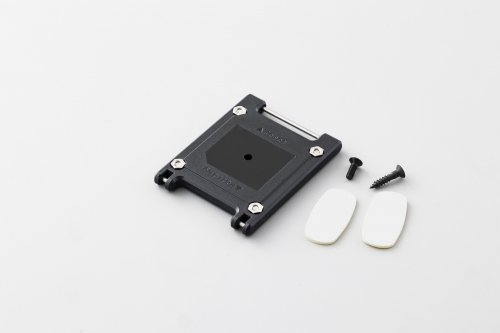

BraveJIG Double-Sided Tape & Screws 2×2
BJ-AB22-WS-01
Mounting base for securing 2×2-size modules of various types.
Specifications
| BraveJIG Double-Sided Tape & Screws 2×4 BJ-AB24-WS-01 |
BraveJIG Double-Sided Tape & Screws 2×2 BJ-AB22-WS-01 |
|
|---|---|---|
| Dimensions | Approx. 100 × 64 × 7 mm (including double-sided tape) | Approx. 49 × 64 × 7 mm (including double-sided tape) |
| Weight | Approx. 38 g | Approx. 18 g |
| Operating temperature range | −10 ℃ to 60 ℃ | −10 ℃ to 60 ℃ |
| Material | PC + ABS (enclosure material) | PC + ABS (enclosure material) |
| Production | Braveridge Co., Ltd. Itoshima Factory | Braveridge Co., Ltd. Itoshima Factory |
| Accessories |
|
|
