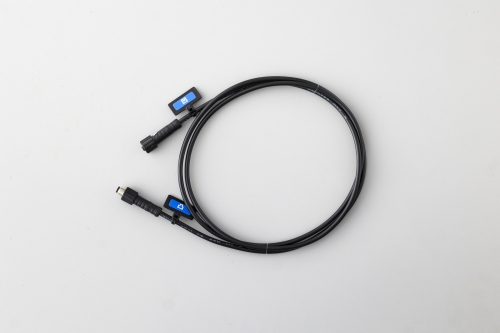

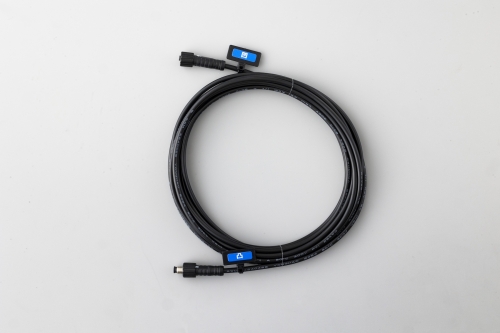

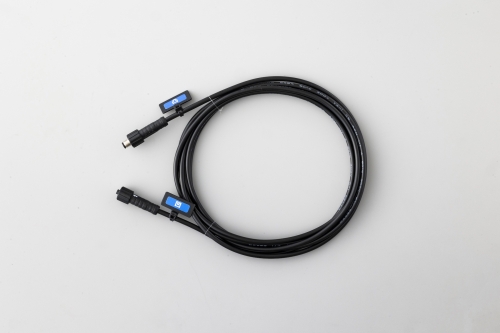

Extend the sensor connectionBraveJIG Sensor Cable 1 m / 2 m / 3 m
- Model Number
- BJ-EC-S1-01 / BJ-EC-S2-01 / BJ-EC-S3-01
- Product Category
- Cables
Extension cable for sensors
This cable can be added between the module body and the sensor unit.
Note: The maximum cable length between the module body and the sensor unit is 5 m.
Specifications
| BraveJIG Sensor Cable 1 m BJ-EC-S1-01 |
BraveJIG Sensor Cable 2 m BJ-EC-S2-01 |
BraveJIG Sensor Cable 3 m BJ-EC-S3-01 |
|
|---|---|---|---|

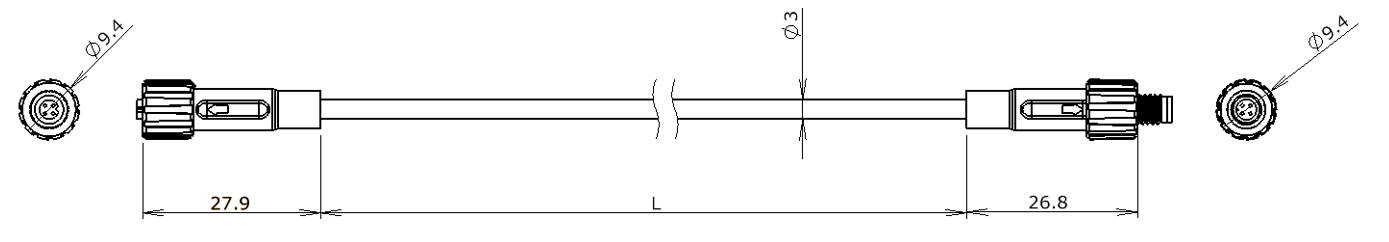

| Cable Specifications |  |
||
| Cable length | 1 m | 2 m | 3 m |
| Operating Temperature Range | −10 ℃ to 60 ℃ | ||
| Dustproof / Waterproof | Equivalent to IP65*
With the connector properly connected to the designated port |
||
| Material | PVC (Cable, Connector Housing) | ||
| Production | China Final Inspection: Braveridge Co., Ltd., Itoshima Factory |
||
