Supply power to modulesBraveJIG Module Cable 150 mm / 1 m / 2 m / 3 m
- Model Number
- BJ-EC-MD015-01 / BJ-EC-MD1-01 / BJ-EC-MD2-01 / BJ-EC-MD3-01
- Product Category
- Cables
Power supply from router to module
This cable supplies power from a router to a BraveJIG
module.
Modules can also be connected in a relay configuration to share power.
Note: The maximum cable length between the router and module is 5 m.
Specifications

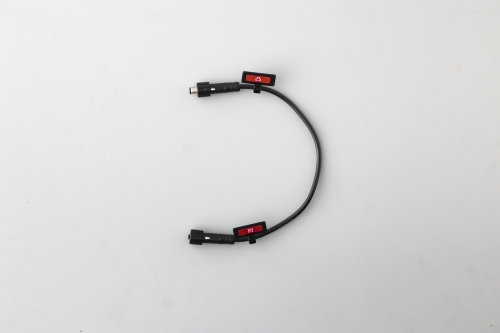

| BraveJIG Module Cable 150 mm BJ-EC-MD015-01 |

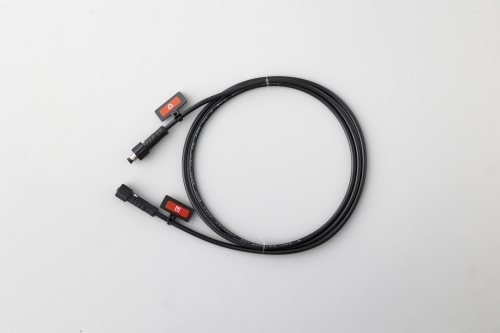

BraveJIG Module Cable 1 m BJ-EC-MD1-01 |

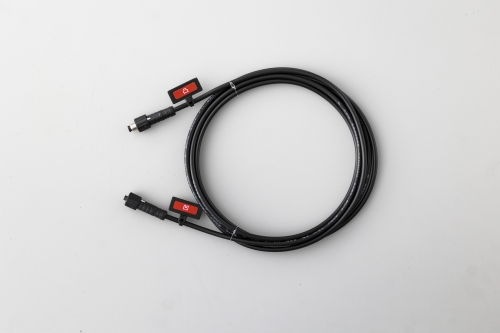

BraveJIG Module Cable 2 m BJ-EC-MD2-01 |

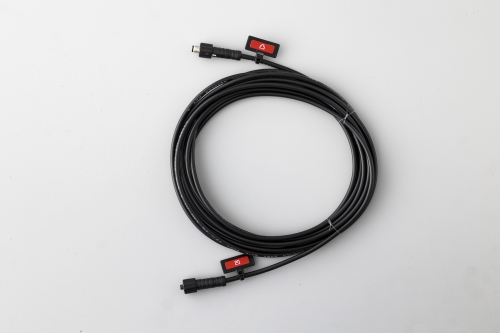

BraveJIG Module Cable 3 m BJ-EC-MD3-01 |
|
|---|---|---|---|---|

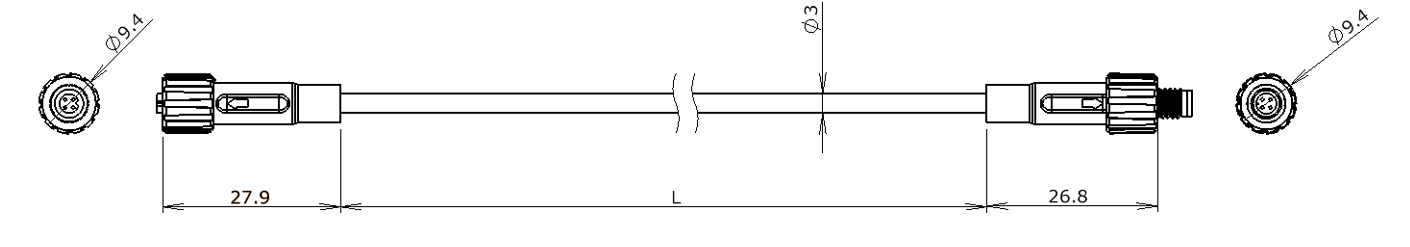

| Cable Specifications |  |
|||
| Cable length | 150 mm | 1 m | 2 m | 3 m |
| Operating Temperature Range | −10 ℃ to 60 ℃ | |||
| Dustproof / Waterproof | Equivalent to IP65* With the connector properly connected to the designated port |
|||
| Material | PVC (Cable, Connector Housing) | |||
| Production | China Final Inspection: Braveridge Co., Ltd., Itoshima Factory |
|||
