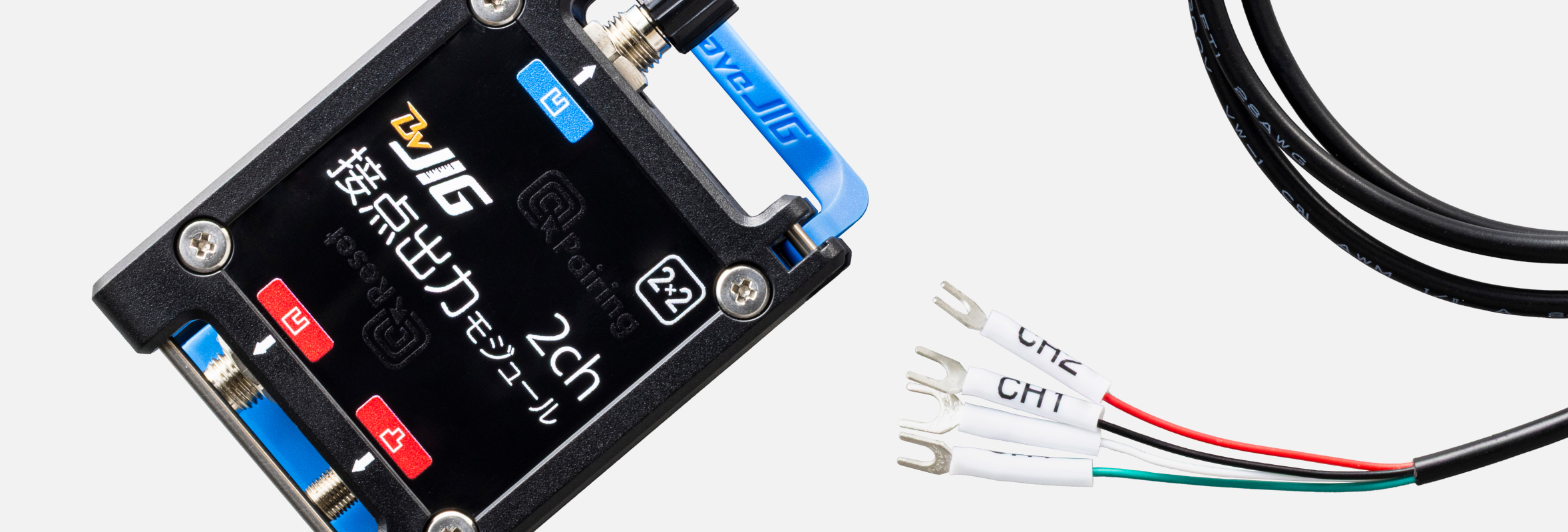

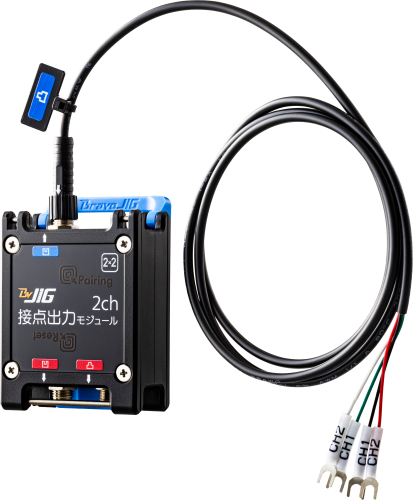

Dual-Circuit Control for External DevicesBraveJIG 2-Channel Contact Output Module
- Model Number
- BJ-MD-CO-01
- Product Category
- I/O Module
Control external devices with two contact outputs
A sensor module equipped with two contact output ports (Y terminals). When connected to a BraveJIG router, each output port can be controlled individually, enabling ON/OFF control of external relay switches as well as control instructions for devices such as pilot lamps and alarm units.
The module connects to the router using Bluetooth® technology.
The module communicates with the router via Bluetooth® Low Energy. Communication of several hundred meters is also possible in Bluetooth® Long Range mode.
Various power supply options available depending on site conditions
Power supply to modules can be selected according to installation conditions and sensing frequency. Options include power from the router via module cable, from a BraveJIG Battery, from a distribution board or AC power source via an external power conversion adapter, or from a mobile battery using a Module USB Type-A conversion cable.
Specifications
- Wireless Communication
- Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Bluetooth® LE
Module - BVMCN52840CFSLR
- Power Supply
- Input Voltage: DC 2.4 to 5.25 V
Powered via the power input port*Power can be supplied from dedicated products such as the BraveJIG Router, Module Battery, Module External Power Conversion Adapter, or USB Type-A Conversion Cable.
- Power Consumption
-
Minimum Value Measurement Conditions Tx Power −40 dBm Advertising Interval 1,000 ms Contact Input Status OFF Output Measured Value Long Range 36.68 μA Legacy 14.58 μA Maximum Value Measurement Condition Tx Power +8 dBm Advertise Interval 100 ms Measured Value Mode Contact Status Measured Value Long Range CH1 only ON 6.4 mA Both CH1 and CH2 ON 12.1 mA Legacy CH1 only ON 5.5 mA Both CH1 and CH2 ON 11.3 mA Note: The above values were measured in standalone operation, excluding relay connections.
- Data Communication
Interface - Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Frequency Range
- Bluetooth® LE: 2,402 MHz to 2,480 MHz
NFC: 13.56 MHz
- Transmission Power (terminal output)
- Bluetooth® LE: −40 to +8 dBm
- Connection Specifications
- Contact A (Normally Open; voltage-free semiconductor contact)
AC/DC 24 V 1 A
- DFU (OTA)
- Supported
- Dimensions
- Module: approx. 50 × 69 × 32 mm
Harness: length 1,000 mm, Y-terminal inner diameter 3.2 mm
- Weight
- Module: approx. 65 g
Harness: approx. 16 g
- Operating Temperature Range
- −10 ℃ to 60 ℃
- Dustproof / Waterproof
- Equivalent to IP65*
With protective caps or dedicated cables properly connected. Note: The harness tip is not dustproof or waterproof.
- Material
- PC + ABS (enclosure material)
- Production
- Braveridge Co., Ltd. Itoshima Factory
- Accessories
- Module connection port protective cap, user manual (warranty included)
