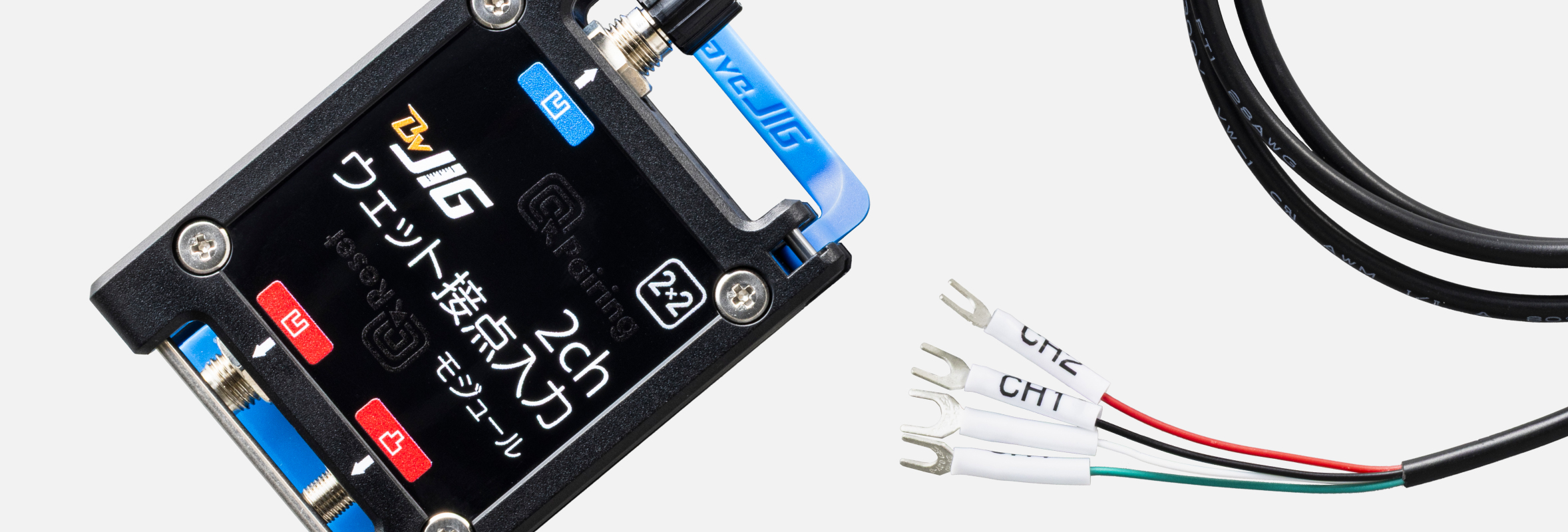

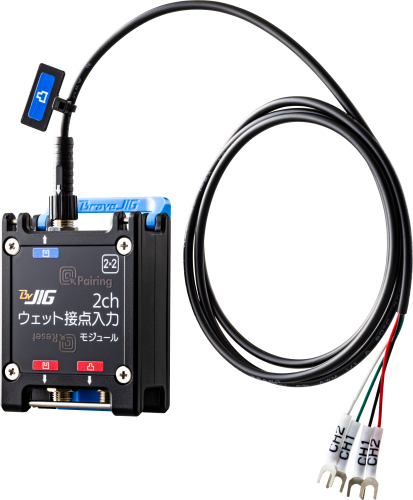

Monitor the operation of various control devices.BraveJIG 2-Channel Wet Contact Input Module
- Model Number
- BJ-MD-CIW-01
- Product Category
- I/O Module
Monitor the operation of various control devices.
This sensor module is designed with wet contact (voltage) input ports. When connected to a BraveJIG router, the two input ports can detect ON/OFF states, enabling monitoring of the operating status of external control equipment and devices.
The module connects to the router using Bluetooth® technology.
The module communicates with the router via Bluetooth® Low Energy. Communication of several hundred meters is also possible in Bluetooth® Long Range mode.
Various power supply options available depending on site conditions
Power supply to modules can be selected according to installation conditions and sensing frequency. Options include power from the router via module cable, from a BraveJIG Battery, from a distribution board or AC power source via an external power conversion adapter, or from a mobile battery using a Module USB Type-A conversion cable.
Specifications
- Wireless Communication
- Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Bluetooth® LE
Module - BVMCN52840CFSLR
- Power Supply
- Input Voltage: DC 2.4 to 5.25 V
Powered via the power input port*Power can be supplied from dedicated products such as the BraveJIG Router, Module Battery, Module External Power Conversion Adapter, or USB Type-A Conversion Cable.
- Power Consumption
-
Minimum Value Measurement Conditions Measurement Mode Alarm Mode Tx Power −40 dBm Advertising Interval 1,000 ms Contact Input Status CH1: OFF CH2: OFF Measured Value Long Range 46.8 μA Legacy 25.8 μA Maximum Value Measurement Condition Measurement Mode Pulse Count Tx Power +8 dBm Advertise Interval 100 ms Contact Input Status CH1: OFF CH2: OFF Measured Value Mode Contact Status Measured Value Long Range CH1 only ON 1.6 mA Both CH1 and CH2 ON 1.9 mA Legacy CH1 only ON 1.4 mA Both CH1 and CH2 ON 1.6 mA Note: The above values were measured in standalone operation, excluding relay connections.
- Data Communication
Interface - Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Frequency Range
- Bluetooth® LE: 2,402 MHz to 2,480 MHz
NFC: 13.56 MHz
- Transmission Power (terminal output)
- Bluetooth® LE: −40 to +8 dBm
- Connection Specifications
- Photocoupler Input
Input voltage: 24 V or less
Input impedance: 1 kΩ
- Supported Connection Types
(device side) - Contact A / Contact B (Normally Open / Normally Closed)
- DFU (OTA)
- Available
- Dimensions
- Module: approx. 50 × 69 × 32 mm
Harness: length 1,000 mm, Y-terminal inner diameter 3.2 mm
- Weight
- Module: approx. 65 g
Harness: approx. 16 g
- Operating Temperature Range
- −10 ℃ to 60 ℃
- Dustproof / Waterproof
- Equivalent to IP65*
With protective caps or dedicated cables properly connected. Note: The harness tip is not dustproof or waterproof.
- Material
- PC + ABS (enclosure material)
- Production
- Braveridge Co., Ltd. Itoshima Factory
- Accessories
- Module connection port protective cap, user manual (warranty included)
