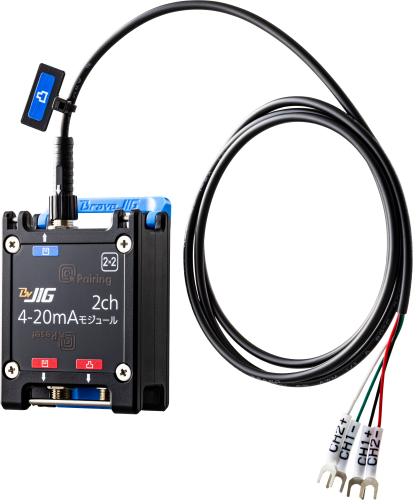

Connects to 4-20 mA analog output sensors for data measurementBraveJIG 2-Channel 4-20 mA Module
- Model Number
- BJ-MD-420-01
- Product Category
- Analog Conversion Module
Remote Monitoring of Industrial Equipment via Current Measurement
This 2-channel module is designed for measuring current values output from industrial analog sensors and other devices that support the 4-20 mA standard.

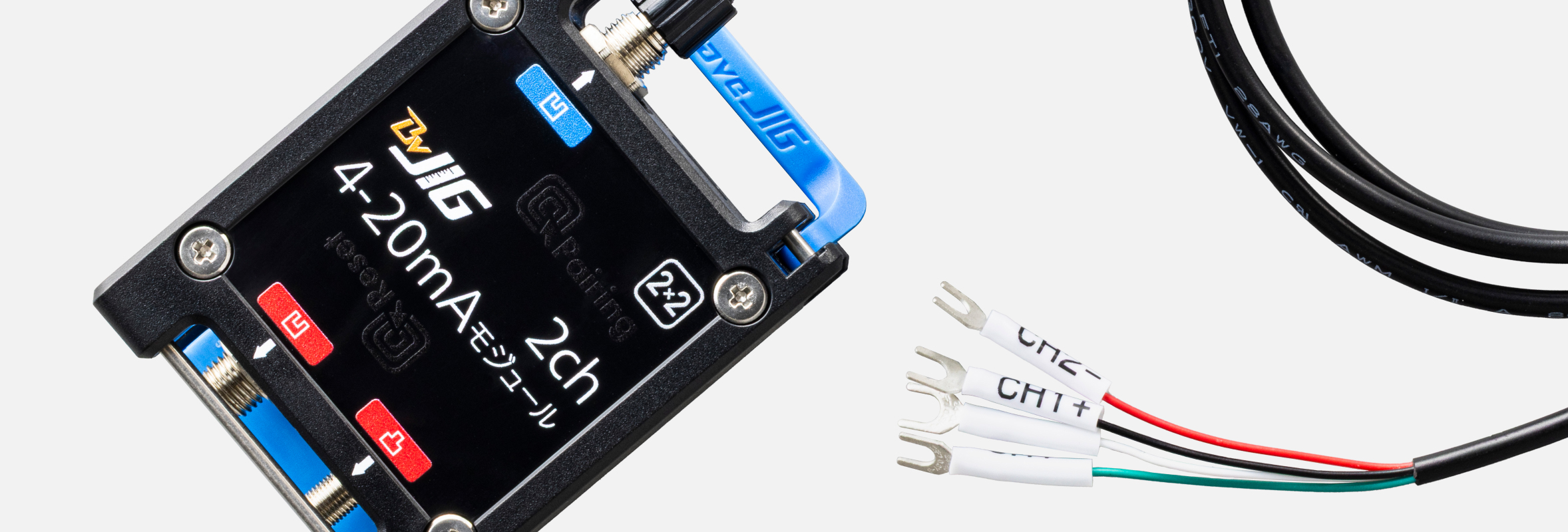

Using its built-in A/D converter and shunt resistors, the module performs high-precision current measurements from analog sensors connected through the dedicated Y-terminals.
The measured data is transmitted as uplink data through the BraveJIG Router to host applications, enabling remote monitoring and data analysis of industrial equipment.
The module connects to the router using Bluetooth® technology.
The module communicates with the router via Bluetooth® Low Energy. Communication of several hundred meters is also possible in Bluetooth® Long Range mode.
Various power supply options available depending on site conditions
Power supply to modules can be selected according to installation conditions and sensing frequency. Options include power from the router via module cable, from a BraveJIG Battery, from a distribution board or AC power source via an external power conversion adapter, or from a mobile battery using a Module USB Type-A conversion cable.
Specifications
- Wireless Communication
- Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Bletooth® LE
Module - BVMCN52840CFSLR
- Power Supply
- Input Voltage: DC 2.4 - 5.25 V
Powered via the power input port*Power is supplied through dedicated accessories such as BraveJIG Router, module battery, external power adapter, or USB Type-A conversion cable.
- Current Consumption
-
Minimum Value Measurement Condition Instantaneous Value Mode Uplink Interval 60 seconds Tx Power −40 dBm Advertising Interval 1,000 ms Measured Value Long Range 52 μA Legacy 43 μA Maximum Value Measurement Condition Sampling Mode (Measurement Interval: 2 Hz) Uplink Interval 60 seconds Tx Power +8 dBm Advertise Interval 100 ms Measured Value Long Range 3.03 mA Legacy 2.67 mA Note: The above values are measured in standalone operation mode, excluding relay connection.
- Data Communication
Interface - Bluetooth® LE
NFC
- Frequency Range
- Bluetooth® LE: 2,402 MHz to 2,480 MHz
NFC: 13.56 MHz
- Transmission Power (terminal output)
- Bluetooth® LE: −40 to +8 dBm
- Sensor Measurement Reference Value
-
Measurement Range (Input Current) DC 0 mA to 20 mA Measurement Accuracy Resolution: 1 LSB 0.000625 mA Accuracy ±2% Measurement Frequency 1 Hz (1,000 ms) (Sampling Interval) 2Hz (500 ms)
- DFU (OTA)
- Supported
- Dimensions
- Module: Approx. 50 × 69 × 32 mm
Harness: 1,000 mm (Length) / 3.2 mm (Y-terminal inner diameter)
- Weight
- Module: Approx. 58 g
Harness: Approx. 16 g
- Operating Temperature Range
- −10 °C to 60 °C
- Dustproof / Waterproof
- Equivalent to IP65*
Note: Applicable only when dedicated cables or sensor units are properly connected, or when protective caps are securely attached to each port. The harness terminal itself is not dust- or water-resistant.
- Material
- PC + ABS (enclosure material)
- Production
- Braveridge Co., Ltd. Itoshima Factory
- Accessories
- Module connection port protection cap, user manual (warranty included)
