Voltage and Current MeasurementBraveJIG 2-Channel ADC Module
- Model Number
- BJ-MD-ADC-01
- Product Category
- Analog Conversion Module
Remote Monitoring of Industrial Equipment via Current Measurement

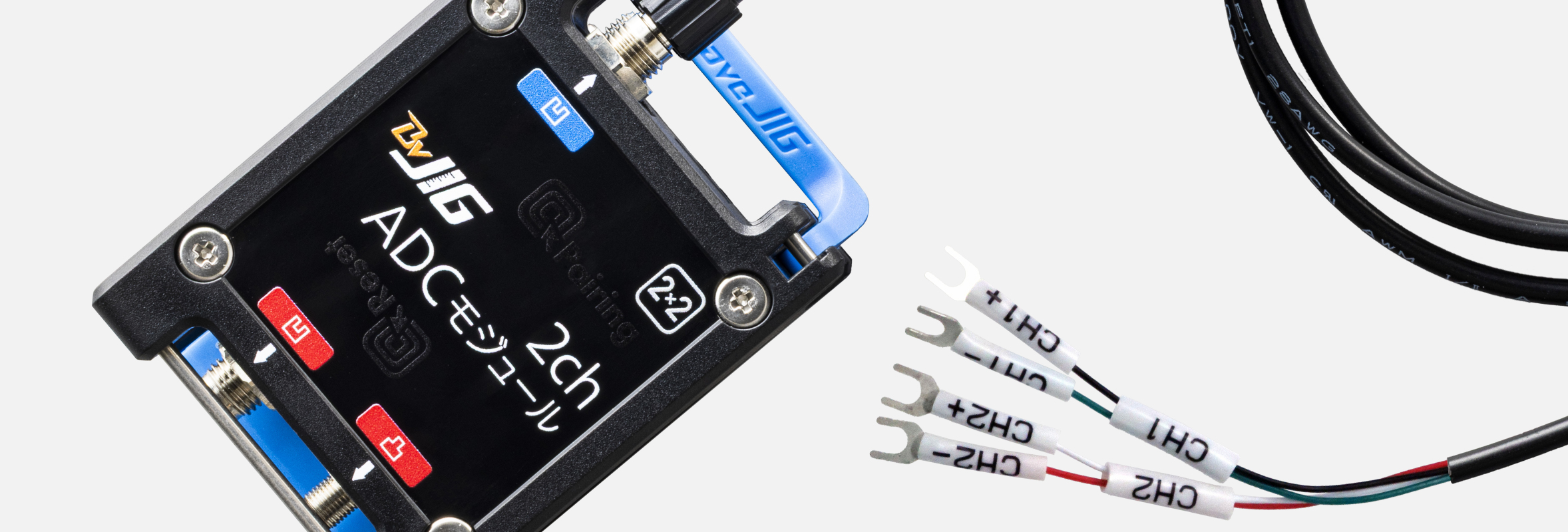

This 2-channel module is designed for measuring voltage values output from industrial analog sensors and other devices.
Equipped with an internal A/D converter and voltage divider resistors, it accurately measures voltage signals from analog sensors connected through the dedicated Y-terminals of the module.
The module supports a wide measurement range (nominal 0 V to ±24 V), enabling flexible application across various types of industrial equipment.
The measured data is transmitted as uplink data through the BraveJIG Router to host applications, allowing easy remote monitoring and data analysis of industrial systems.
The module connects to the router using Bluetooth® technology.
The module communicates with the router via Bluetooth® Low Energy. Communication of several hundred meters is also possible in Bluetooth® Long Range mode.
Various power supply options available depending on site conditions
Power supply to modules can be selected according to installation conditions and sensing frequency. Options include power from the router via module cable, from a BraveJIG Battery, from a distribution board or AC power source via an external power conversion adapter, or from a mobile battery using a Module USB Type-A conversion cable.
Specifications
- Wireless Communication
- Bluetooth® Core 5.1
NFC ISO/IEC 15693
- Bletooth® LE
Module - BVMCN52840CFSLR
- Power Supply
- Input Voltage: DC 2.4 - 5.25 V
Powered via the power input port*Power is supplied through dedicated accessories such as BraveJIG Router, module battery, external power adapter, or USB Type-A conversion cable.
- Current Consumption
-
Minimum Value Measurement Condition Instantaneous Value Mode Uplink Interval 60 seconds Tx Power −40 dBm Advertising Interval 1,000 ms Measured Value Long Range 236 μA Legacy 172 μA Maximum Value Measurement Condition Sampling Mode (Measurement Interval: 2 Hz) Uplink Interval 60 seconds Tx Power +8 dBm Advertise Interval 100 ms Measured Value Long Range 2.94 mA Legacy 2.60 mA Note: The above values are measured in standalone operation mode, excluding relay connection.
- Data Communication
Interface - Bluetooth® LE
NFC
- Frequency Range
- Bluetooth® LE: 2,402 MHz to 2,480 MHz
NFC: 13.56 MHz
- Transmission Power (terminal output)
- Bluetooth® LE: −40 to +8 dBm
- Sensor Measurement Reference Value
-
Measurement Range DC 0 V to ±24 V Measurement Accuracy Resolution: 1 LSB 1.0625 mV Measurement Accuracy (at Full Scale) ±1% * Measurement Frequency 1 Hz (1,000 ms) (Sampling Interval) 2Hz (500 ms) Measurement accuracy is verified under Braveridge’s standard inspection and measurement conditions.
Stable measurement can be achieved when powered by battery; however, when using external power sources, measurement errors may occur due to power supply noise.
For high-precision measurement, we recommend using an isolator or similar device to minimize noise interference.
- DFU (OTA)
- Supported
- Dimensions

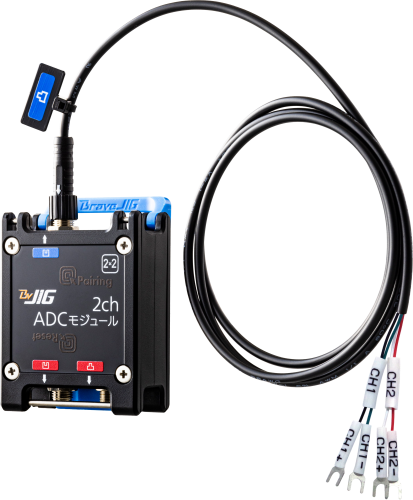

- Module: Approx. 50 × 69 × 32 mm
Harness: 1,000 mm (Length) / 3.2 mm (Y-terminal inner diameter)
- Weight
- Module: Approx. 58 g
Harness: Approx. 16 g
- Operating Temperature Range
- −10 °C to 60 °C
- Dustproof / Waterproof
- Equivalent to IP65*
Note: Applicable only when dedicated cables or sensor units are properly connected, or when protective caps are securely attached to each port. The harness terminal itself is not dust- or water-resistant.
- Material
- PC + ABS (enclosure material)
- Production
- Braveridge Co., Ltd. Itoshima Factory
- Accessories
- Module connection port protection cap, user manual (warranty included)
